DIMENSIONS

W H X BASE MODEL NO.
8″ 96″ 24″ S2900-L24
8″ 96″ 36″ S2901-L36
8″ 96″ 48″ S2902-L48
8″ 120″ 72″ S2903-L72
8″ 144″ 96″ S2904-L96
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277 [Excluding Downlight]
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided

FEATURES

• Opal Matte Acrylic Rectilinear Shade
• Clear Silver Braided Cord with (2) Adjustable Aircraft Cable
• Downlight and Core Light May Be Wired to Separate Control Circuits
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Downlight + Lamp Code + Finish + OA + Option Code

S2900-L24 + ____* + 27K + PT CT + OA + Option
S2901-L36 D16N 30K BA TT
S2902-L48 D16M 35K PC PWT
S2903-L72 D16W 40K NT BST
S2904-L96 GT CC
ZT

____* = if left blank – no downlight

FINISHES
BA Brushed Aluminum
PC Polished Chrome
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch		 TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
DOWNLIGHT OPTIONS

D16N Narrow (30 degrees)
D16M Medium (45 degrees)
D16W Wide (60 degrees)

OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA48
SWC 45-Degree Swivel Canopy

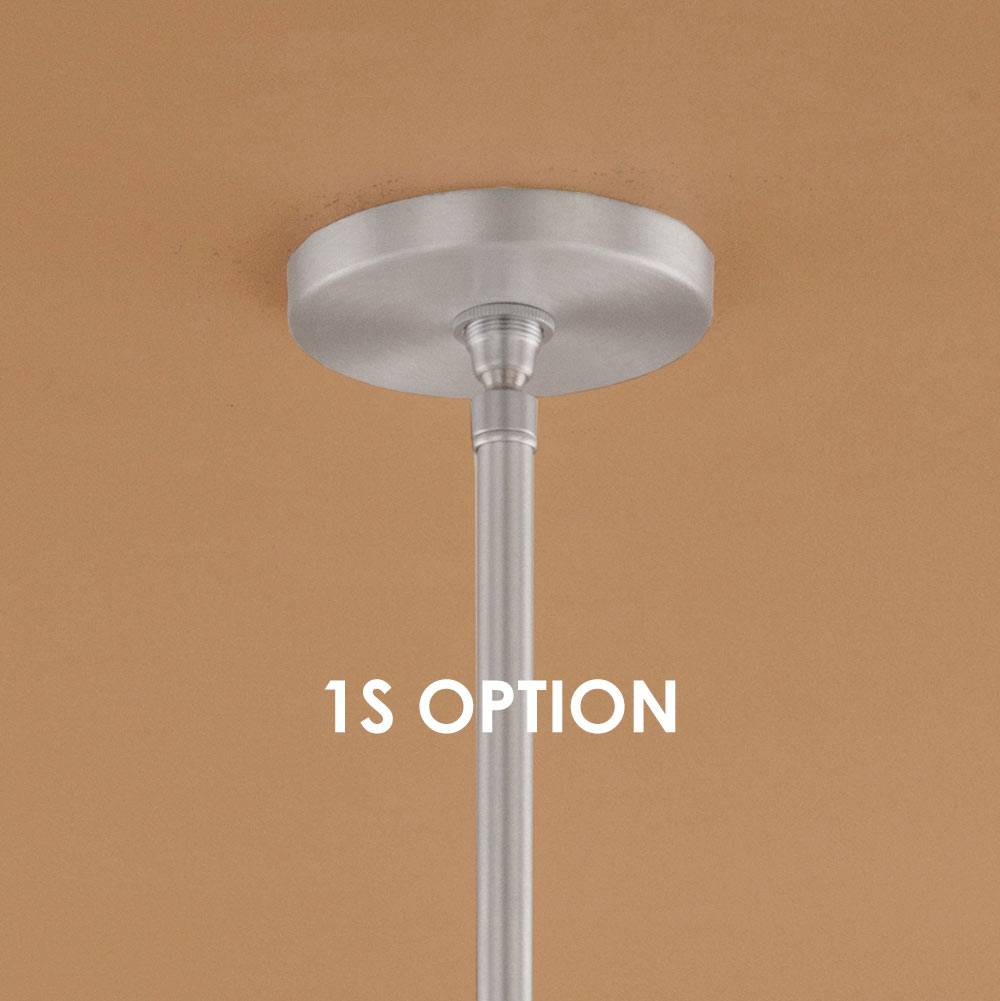

1S Single Stem
BK2 – Black Cord with (2) Adjustable Aircraft Cable
WH2 – White Cord with (2) Adjustable Aircraft Cable

LIGHT OUTPUT

LXX = ~ 93 LPW Delivered Lumens (Example: L24= 24W x 93LPW = 2,232 Lumens)

Downlight Lumens: DxxW indicates Downlight wattage and beam spread. For the downlight, typical lumen output is 100LPW, so a D16W would deliver 1,600L in a wide beam pattern.
