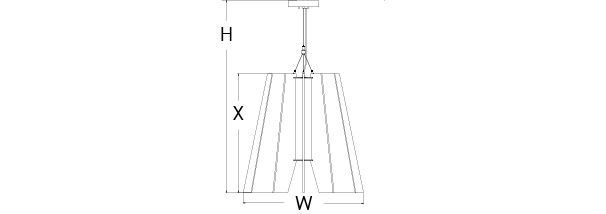

Print This PageDIMENSIONS
| W | X | H | BASE MODEL NO. |
| 25″ | 35 1/2″ | 57 7/16″ | S2825-L36 |
SPECIFICATIONS
Driver: 0-10V Dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

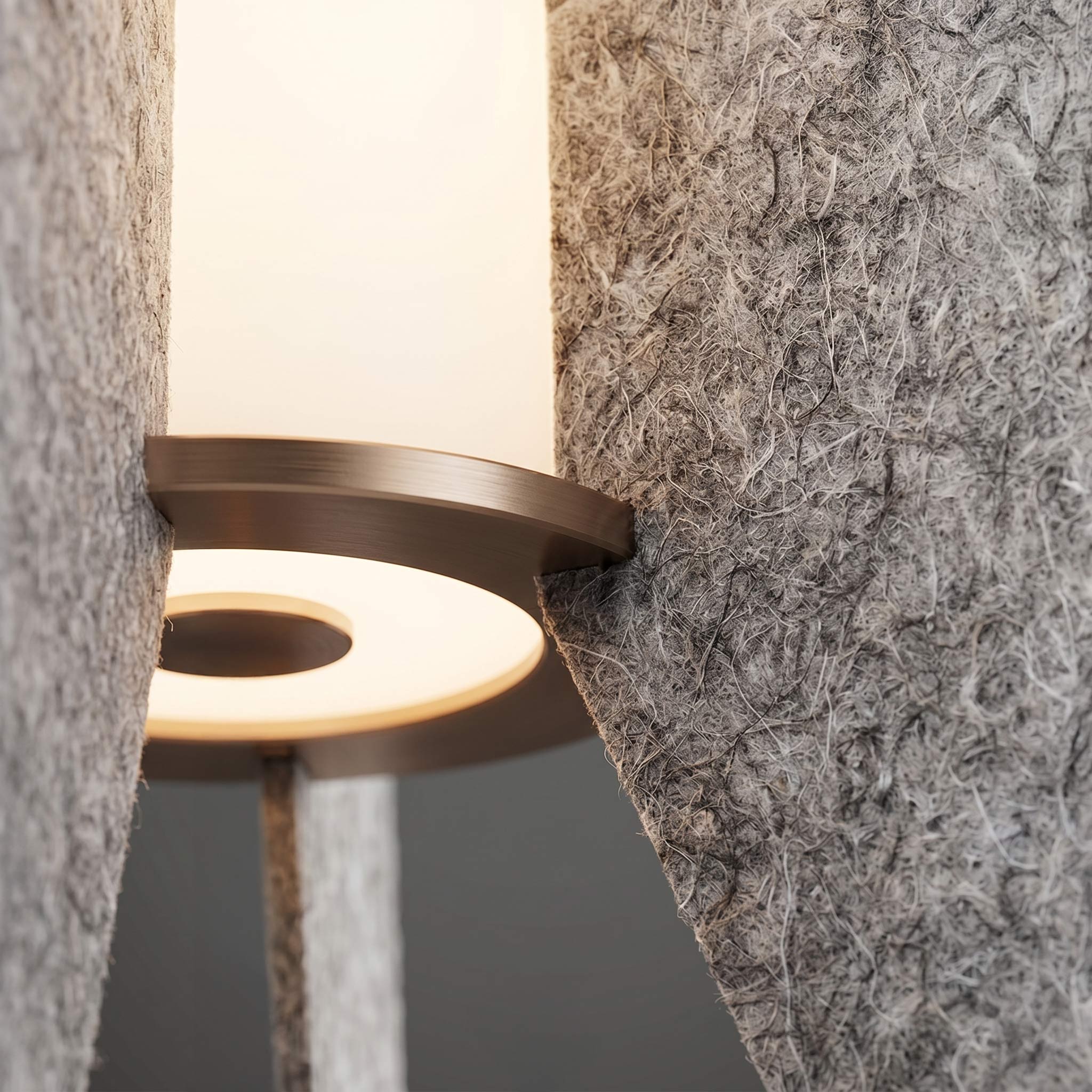

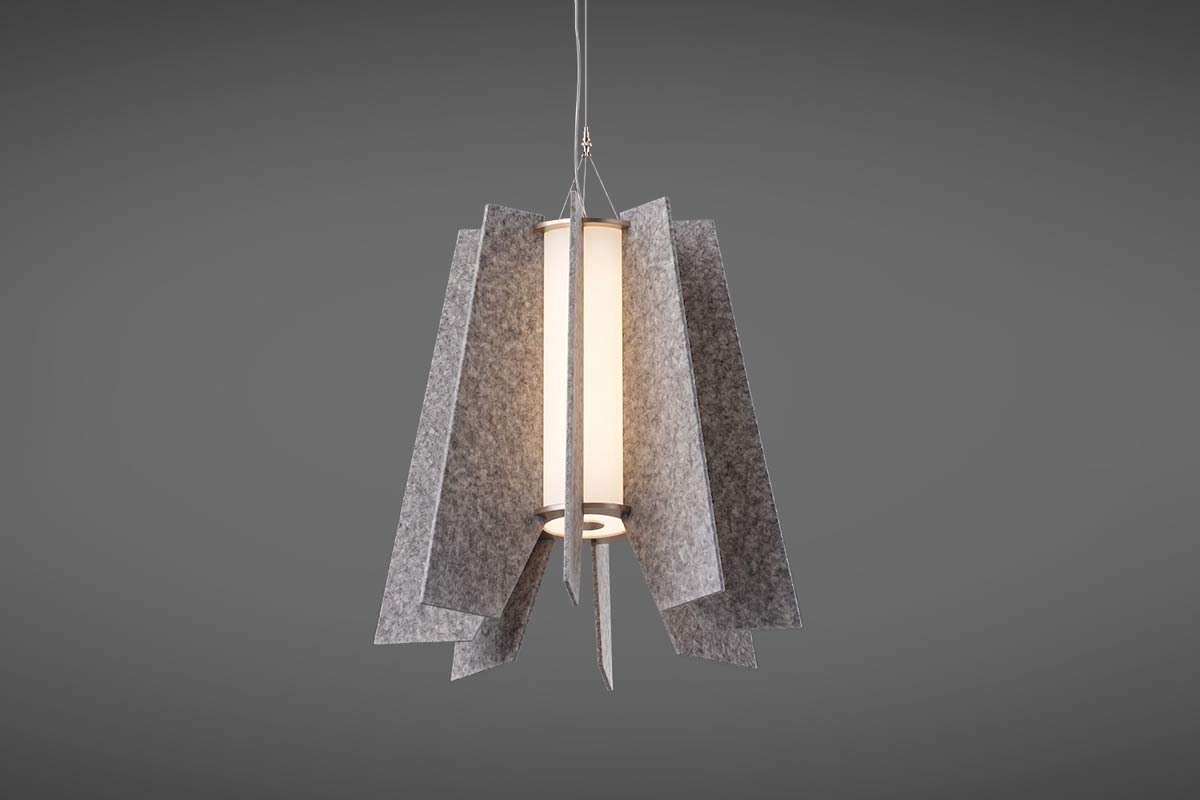

FEATURES
• Opal Matte Acrylic Diffuser
• 3/8” Thick Felt Fins
• 7500 Sq. In. (12 Panel) with NRC value of 0.55
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + Finish Code + Panel Qty + Felt Color + OA + Option Code (Example: S2825-L36-PT-12-F07)
| S2825‑L36 | + | 27K | + | PT | + | 8 | + | F01 | F09 | + | OA | + | Option |
| 30K | CC | 12 | F02 | F10 | |||||||||
| 35K | BA | F03 | F11 | ||||||||||
| 40K | CT | F04 | F12 | ||||||||||
| GT | F05 | F13 | |||||||||||
| NT | F06 | F14 | |||||||||||
| ZT | F07 | F15 | |||||||||||
| TT | F08 | ||||||||||||
| PWT | |||||||||||||
| BST |
FINISHES
| BA Brushed Aluminum CT Copper Touch NT Nickel Touch GT Gold Touch ZT Bronze Touch |
TT Toffee Touch PWT Pewter Touch BST Blackened Steel Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
FELT FABRIC
| F01 Midnight F02 Iron F03 Granite F04 Steel F05 Coin F06 Lunar F07 Cool F08 Bronze |
F09 Camel F10 Royal F11 Navy F12 Scarlet F13 Forest F14 Lemon F15 Orange |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
