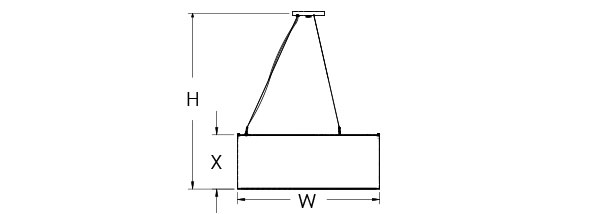

DIMENSIONS

W H X BASE MODEL NO.
24″ 72″ 10″ S2815-L48M
30″ 72″ 12″ S2816-L60M
36″ 72″ 14″ S2817-L72M
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Interior Lens
• Clear Silver Braided Cord with (4) Adjustable Aircraft Cables
• Seamless Aluminum Material
• Solid Aluminum Top
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Exterior Finish Code + Interior Finish Code + OA + Option Code

S2815-L48M + 27K + PT CT + PT CT + OA + Option
S2816-L60M 30K CC ZT CC ZT
S2817-L72M 35K BA TT BA TT
40K NT PWT NT PWT
GT BST GT BST
EXTERIOR FINISHES
BA Brushed Aluminum
ZT Bronze Touch
NT Nickel Touch
GT Gold Touch
CT Copper Touch		 TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
INTERIOR FINISHES
BA Brushed Aluminum
ZT Bronze Touch
NT Nickel Touch
GT Gold Touch
CT Copper Touch		 TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
BK4 Black Cord with (4) Adjustable Aircraft Cables
WH4 White Cord with (4) Adjustable Aircraft Cables
FLL Flush Lens

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L72= 72W x 75LPW = 5,400 Lumens)
