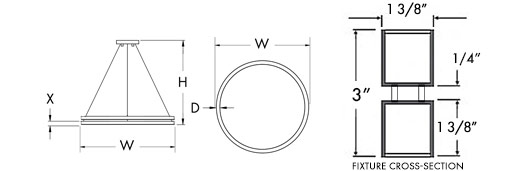

DIMENSIONS

W X D H BASE MODEL NO.
32″ 3″ 1 3/8″ 96″ S2720-2L46†
36″ 3″ 1 3/8″ 96″ S2721-2L62†
48″ 3″ 1 3/8″ 96″ S2722-2L78†
60″ 3″ 1 3/8″ 96″ S2723-2L90†
72″ 3″ 1 3/8″ 96″ S2724-2L132†
96″ 3″ 1 3/8″ 96″ S2725-2L192*
120″ 3″ 1 3/8″ 96″ S2726-2L240*

†Central Canopy (Standard) and MCR Mounting Option Available
*MCR Mounting Only – No Central Canopy

SPECIFICATIONS

Driver: Constant Voltage, 0-10V Dimming, 120/277V
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

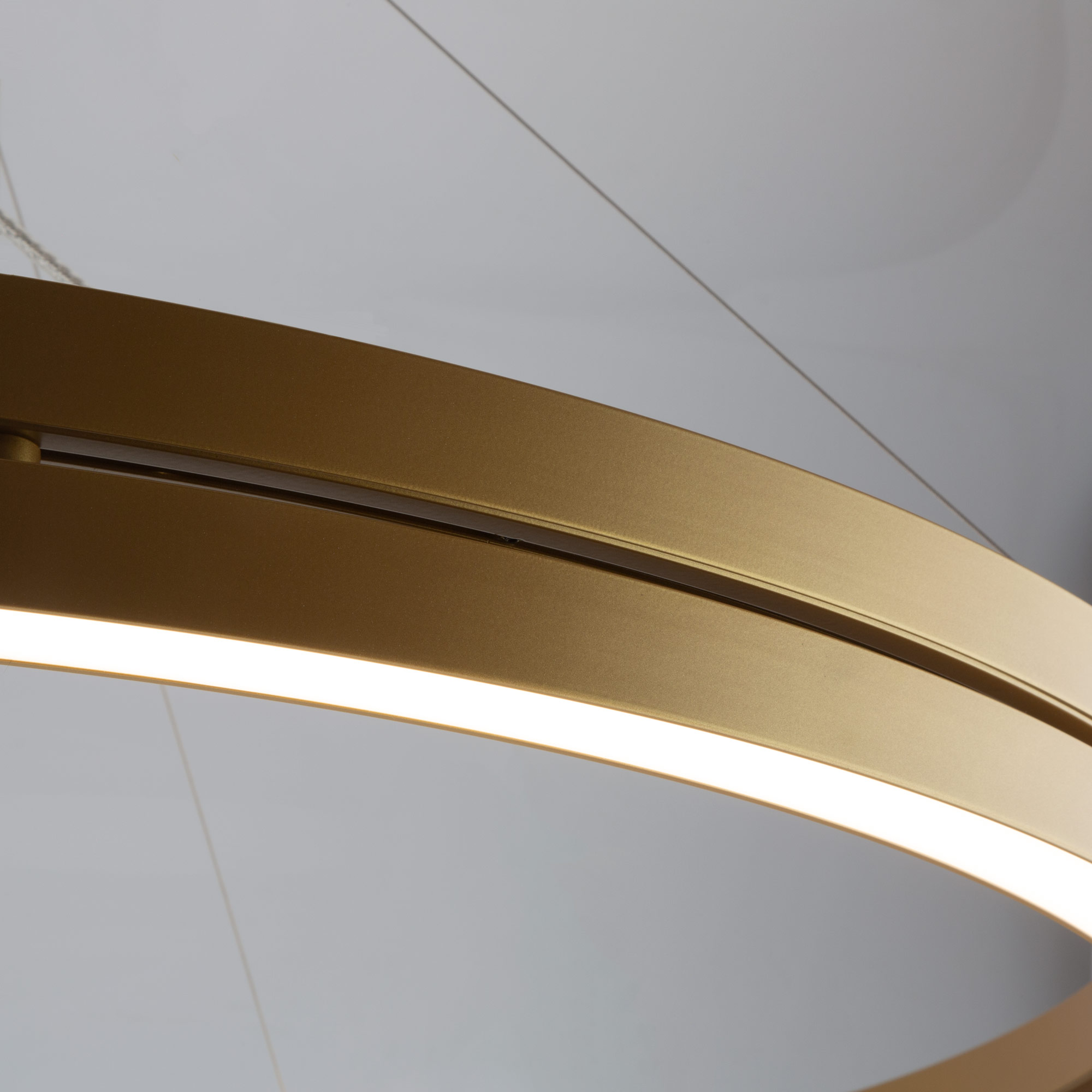

• Opal Matte Acrylic Top and Bottom Lens (No Uplight Lens Option)
• Solid Aluminum Material
• Central Canopy 8″ Dia. (S2720-S2724 Only)
• Driver in Canopy (S2723 and S2724 have two drivers in canopy and two drivers in a remote box)
• Clear Silver Braided Cord with (4) Adjustable Aircraft Cables
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + OA +  Option Code

S2720-2L46 + 27K + PT + OA + Option
S2721-2L62 30K CC
S2722-2L78 35K BA
S2723-2L90 40K CT
S2724-2L132 GT
S2725-2L192 ZT
S2726-2L240 NT
TT
PWT
BST
FINISHES
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
CT Copper Touch
ZT Bronze Touch		 PWT Pewter Touch
TT Toffee Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
MCR Multi-Canopy – Remote Driver Option [(S2720-S2724) 4 Vertical Cables and Canopies – (S2725-S2726) 8 Vertical Cables and Canopies]

LIGHT OUTPUT

LXX = ~ 49.4 LPW Down + 56.4 LPW Up (86.7 LPW Up No Lens)
[Example: 2L46 = (46W x 49.4LPW) + (46W x 56.4LPW) = 4,866.8 Lumens]
