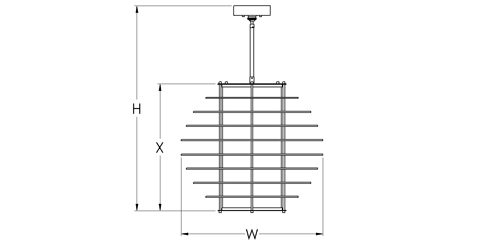

| W | H | X | BASE MODEL NO. |
| 29″ | 42″ | 26″ | S2715-L68M |
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
• Opal Matte Acrylic
• Solid Metal Rings
• 1/4″ Clear Acrylic Disks
• Single Stem
• 45 Degree Swivel Canopy
• Opal Matte Bottom Lens
• LED 0-10V Dimming Driver
Model No. + Lamp Code + CCT + Finish + OA + Option Code
| S2715-L68M | + | 27K | + | PT | + | OA | + | Option |
| 30K | BA | |||||||
| 35K | CT | |||||||
| 40K | GT | |||||||
| NT | ||||||||
| ZT | ||||||||
| TT | ||||||||
| PWT | ||||||||
| BST |
| BA Brushed Aluminum CT Copper Touch GT Gold Touch NT Nickel Touch ZT Bronze Touch |
TT Toffee Touch PWT Pewter Touch BST Blackened Steel Touch PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
OA Specify Overall Height of Fixture in Inches; e.g. – OA96

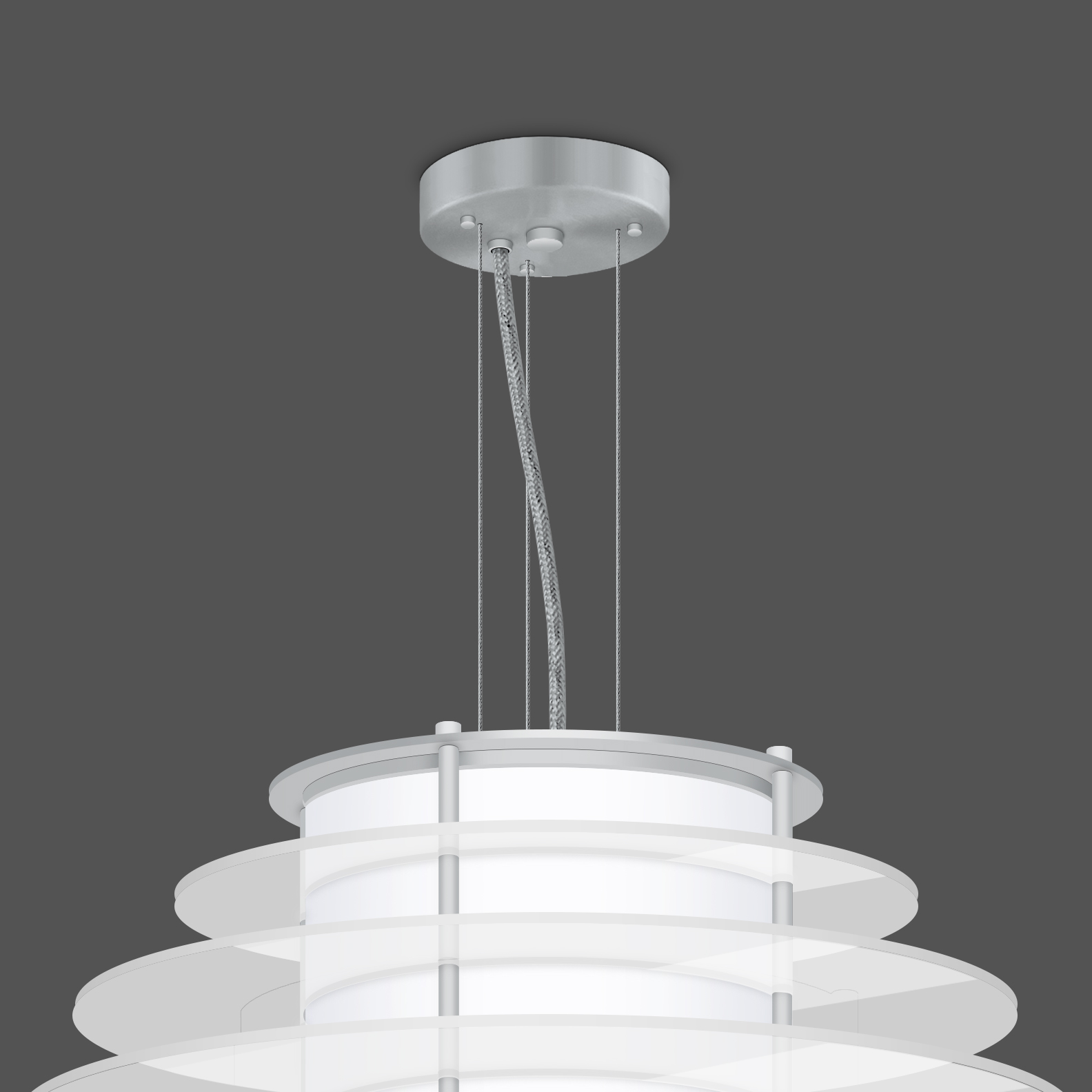

SB3 Clear Silver Braided Cord with (3) Adjustable Aircraft Cables
BK3 Black Cord with (3) Adjustable Aircraft Cables
WH3 White Cord with (3) Adjustable Aircraft Cables
LXX = ~ 72 LPW Delivered Lumens (Example: L68M= 68W x 72LPW = 4,896 Lumens)
