Print This PageDIMENSIONS
| W | H | D | X | BASE MODEL NO. |
| 8′ | 3.5″ | 3.5″ | 96″ | S2685-Q-L196 |
| 10′ | 3.5″ | 3.5″ | 96″ | S2686-Q-L216 |
| 12′ | 3.5″ | 3.5″ | 96″ | S2687-Q-L260 |
| 15′ | 3.5″ | 3.5″ | 96″ | S2688-S-L324 |
Q – Indicates quartered
S – Indicates Sectioned, Not Quartered
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Acrylic Bottom Lens
• Easy Assembly
• Clear Silver Braided Cord with Adjustable Aircraft Cables (8)
• Adjustable to 96″ OA

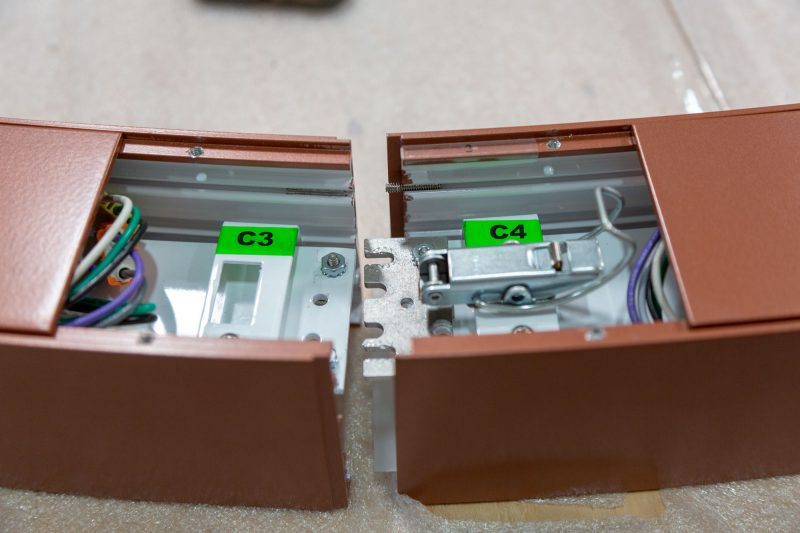

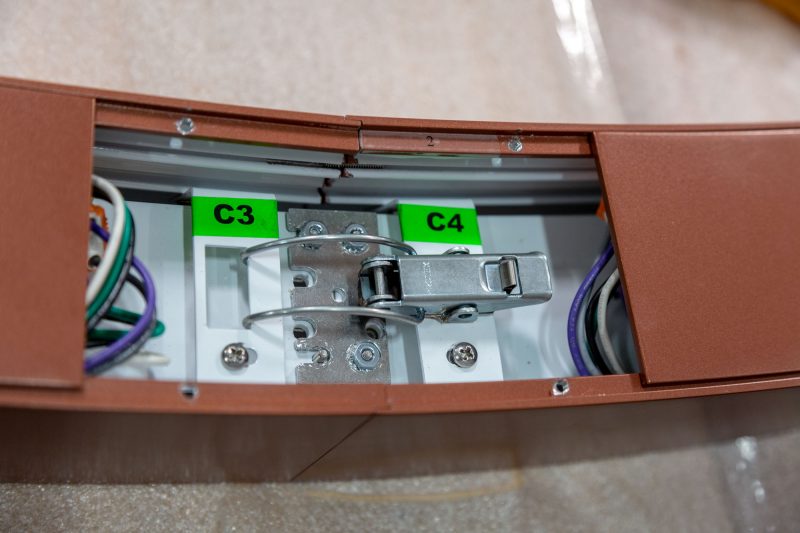

• Quartered Fixtures Help Reduce Shipping Costs
• Solid Aluminum Materials
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + Finish + OA + Option Code
| S2685-Q-L196 | + | 27K | + | PT | ZT | + | OA | + | Option |
| S2686-Q-L216 | 30K | CC | CT | ||||||
| S2687-Q-L260 | 35K | BA | TT | ||||||
| S2688-S-L324 | 40K | NT | PWT | ||||||
| GT | BST |
FINISHES
| BA Brushed Aluminum ZT Bronze Touch NT Nickel Touch GT Gold Touch CT Copper Touch |
TT Toffee Touch PWT Pewter Touch BST Blackend Steel Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
LIGHT OUTPUT
LXX = ~ 63 LPW Delivered Lumens (Example: L144= 144W x 63LPW = 9,072 Lumens)
