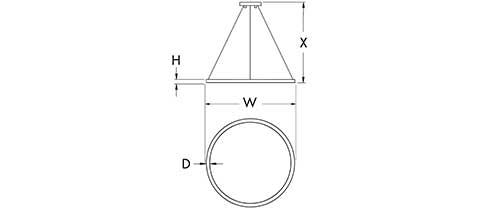

W | H | D | X | BASE MODEL NO. |
24″ | 3 1/2″ | 3 1/2″ | 96″ | S2680-L42 |
36″ | 3 1/2″ | 3 1/2″ | 96″ | S2681-L72 |
48″ | 3 1/2″ | 3 1/2″ | 96″ | S2682-L96 |
60″ | 3 1/2″ | 3 1/2″ | 96″ | S2683-L124 |
72″ | 3 1/2″ | 3 1/2″ | 96″ | S2684-L144 |
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
• Opal Acrylic Bottom Lens
• Solid Aluminum Material
• Clear Silver Braided Cord with Adjustable Aircraft Cables
• Integral Driver
• LED 0-10V Dimming Driver
Model No. + Lamp Code + CCT + Finish + OA + Option Code
S2680-L42 | + | 27K | + | PT | + | OA | + | Option |
S2681-L72 | 30K | CC | ||||||
S2682-L96 | 35K | BA | ||||||
S2683-L124 | 40K | NT | ||||||
S2684-L144 | GT | |||||||
CT | ||||||||
ZT | ||||||||
TT | ||||||||
PWT | ||||||||
BST |
BA Brushed Aluminum ZT Bronze Touch NT Nickel Touch GT Gold Touch CT Copper Touch |
PWT Pewter Touch TT Toffee Touch BST Blackened Steel Touch CC Custom Painted Finish PT Powder Coated Finishes* |
*(Specify Color Code from the list of Powder Coating Finishes) |
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

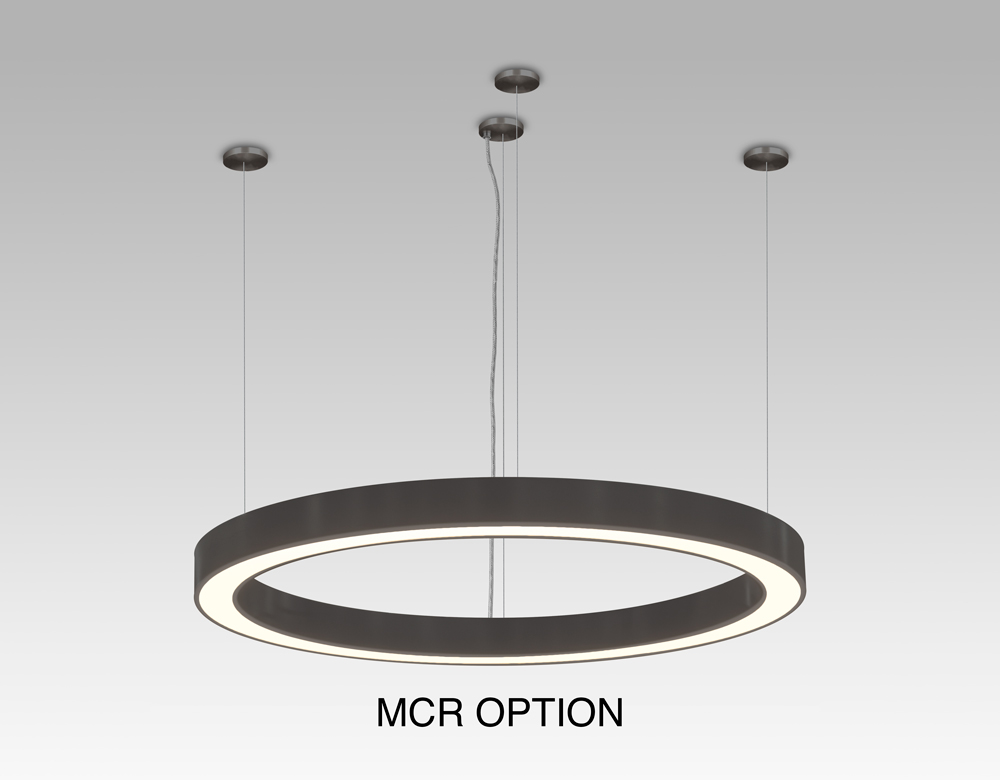

MCR Multiple Canopy Mounting with Straight Cables
LXX = ~ 63 LPW Delivered Lumens (Example: L42= 42W x 63LPW = 2,646 Lumens)
