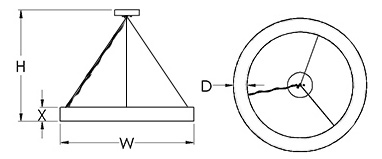

DIMENSIONS

W H D X BASE MODEL NO.
2′ 96″ 3.5″ 3.5″ S2665-L42
3′ 96″ 3.5″ 3.5″ S2666-L72

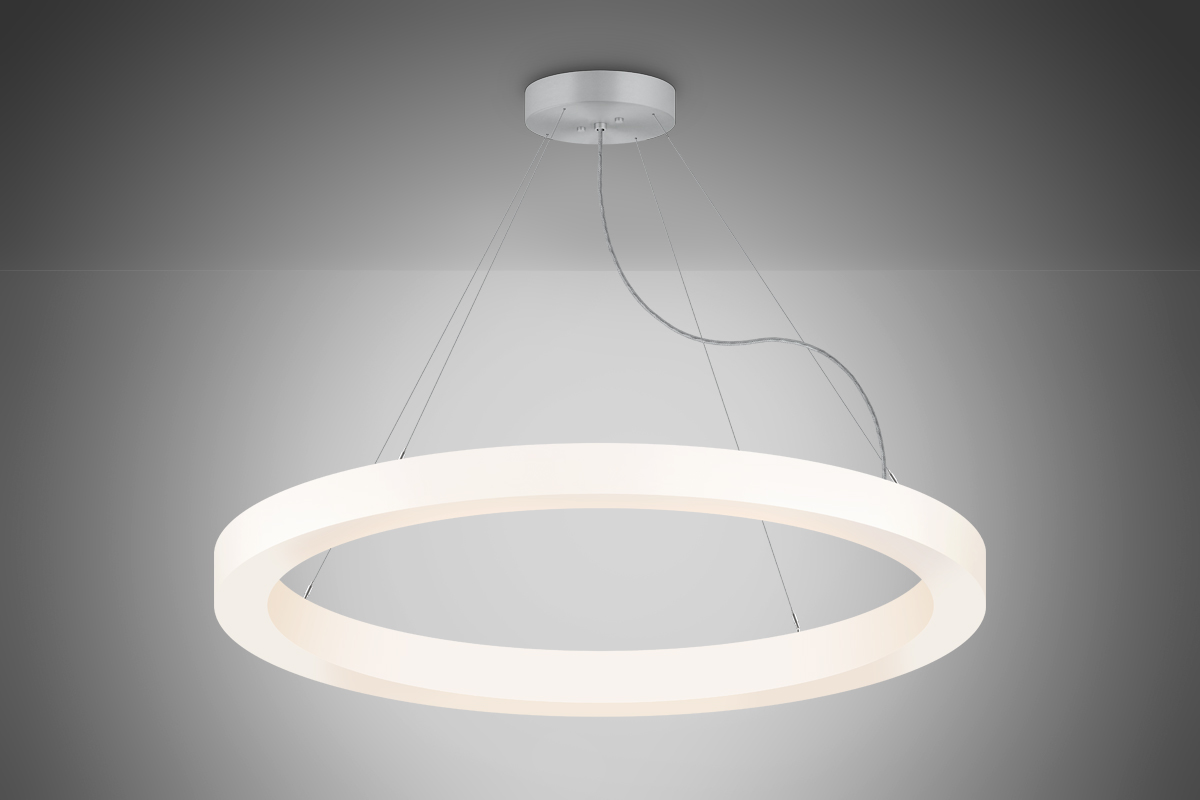

4′ 96″ 3.5″ 3.5″ S2667-L96
5′ 96″ 3.5″ 3.5″ S2668-L124
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Glossy Opal Acrylic Lens on (3) Sides
• Solid Aluminum Material
• Canopy Mounted Drivers
• Clear Silver Braided Cord with Adjustable Aircraft Cables
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + OA +  Option Code

S2665-L42 + 27K + PT + OA + Option
S2666-L72 30K CC
S2667-L96 35K BA
S2668-L124 40K NT
GT
CT
ZT
TT
PWT
BST
FINISHES
BA Brushed Aluminum
ZT Bronze Touch
NT Nickel Touch
GT Gold Touch
CT Copper Touch		 TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)

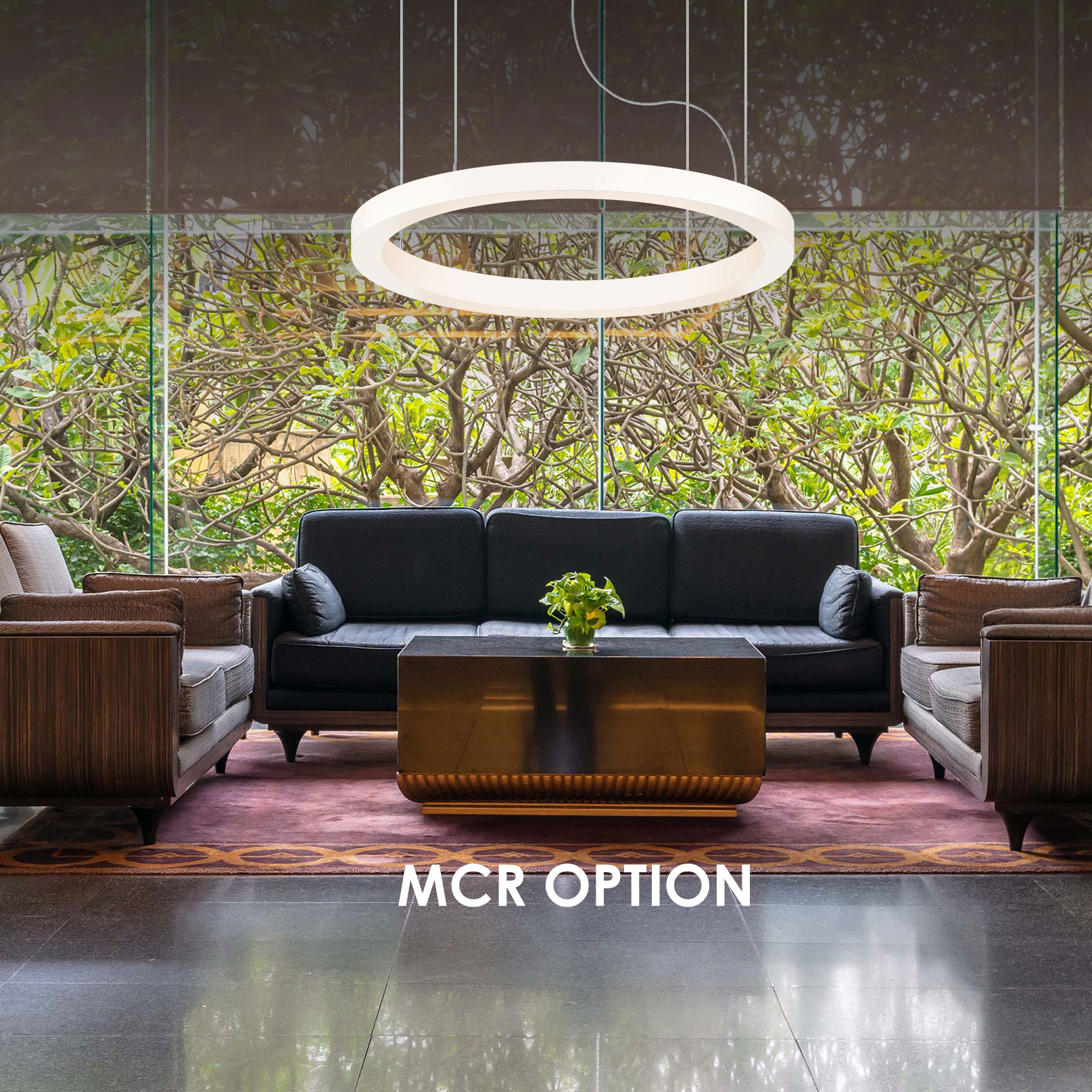

MCR 4 Straight AC Cables with minimal canopies and remote drivers.

LIGHT OUTPUT

LXX = ~ 113 LPW Delivered Lumens (Example: L72= 72W x 113LPW = 8,136 Lumens)
