Print This PageDIMENSIONS
| W | H | X | BASE MODEL NO. |
| 14″ | 60″ | 18″ | S2590-L32 |
| 21″ | 60″ | 24″ | S2591-L36 |
| 28″ | 72″ | 36″ | S2592-L60 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Clear Silver Braided Cord with (1) Adjustable Aircraft Cable

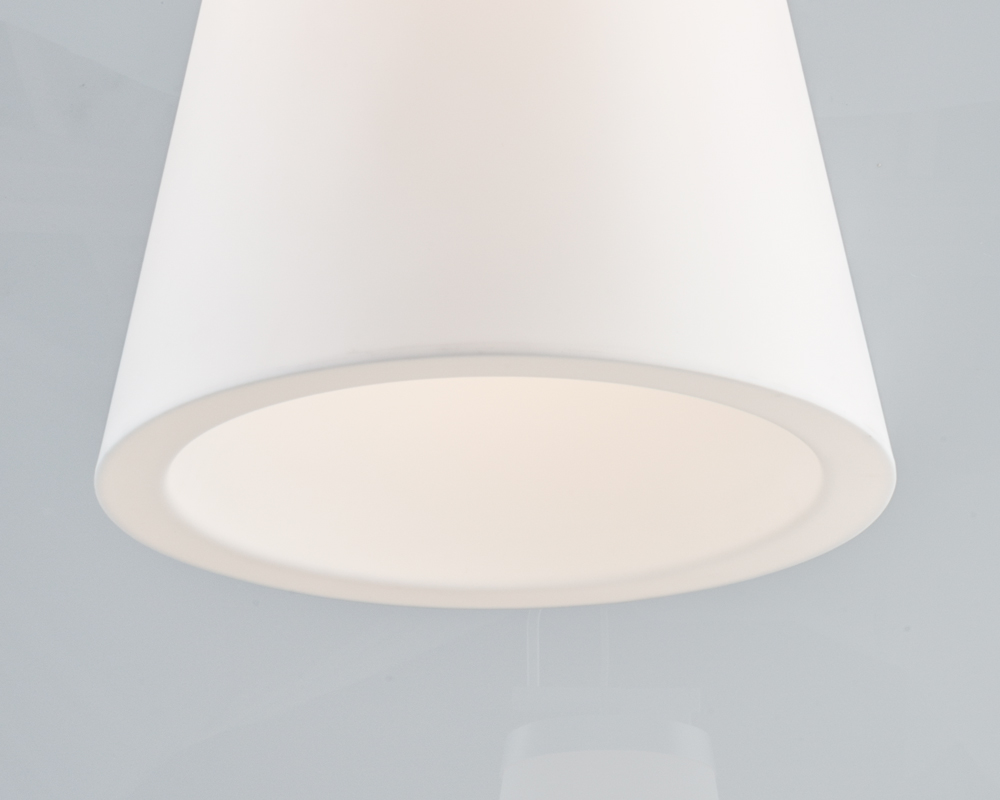

• Opal Matte Acrylic with Unique Closed Concave Bottom
• Patent Pending
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + OA + Option Code
| S2590-L32 | + | 27K | + | PT | + | OA | + | Option |
| S2591-L36 | 30K | BA | ||||||
| S2592-L60 | 35K | CT | ||||||
| 40K | GT | |||||||
| NT | ||||||||
| ZT | ||||||||
| TT | ||||||||
| PWT | ||||||||
| BST |
FINISHES
| BA Brushed Aluminum CT Copper Touch GT Gold Touch NT Nickel Touch ZT Bronze Touch |
TT Toffee Touch PWT Pewter Touch BST Blackened Steel Touch PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; e.g. – OA96
LIGHT OUTPUT
LXX = ~ 75 LPW Delivered Lumens (Example: L32= 32W x 75LPW = 2,400 Lumens)
