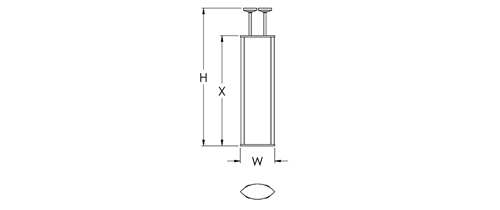

Print This PageDIMENSIONS
| W | H | X | BASE MODEL NO. |
| 16 1/4″ | 96″ | 52″ | S2570-L64 |
| 16 1/4″ | 96″ | 52″ | S2570-L118 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided
FEATURES
• Opal Matte Acrylic
• Solid Bottom without Down Light
• Solid Aluminum Material
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + Finish + OA + Option Code
FINISHES
PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*
*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA50

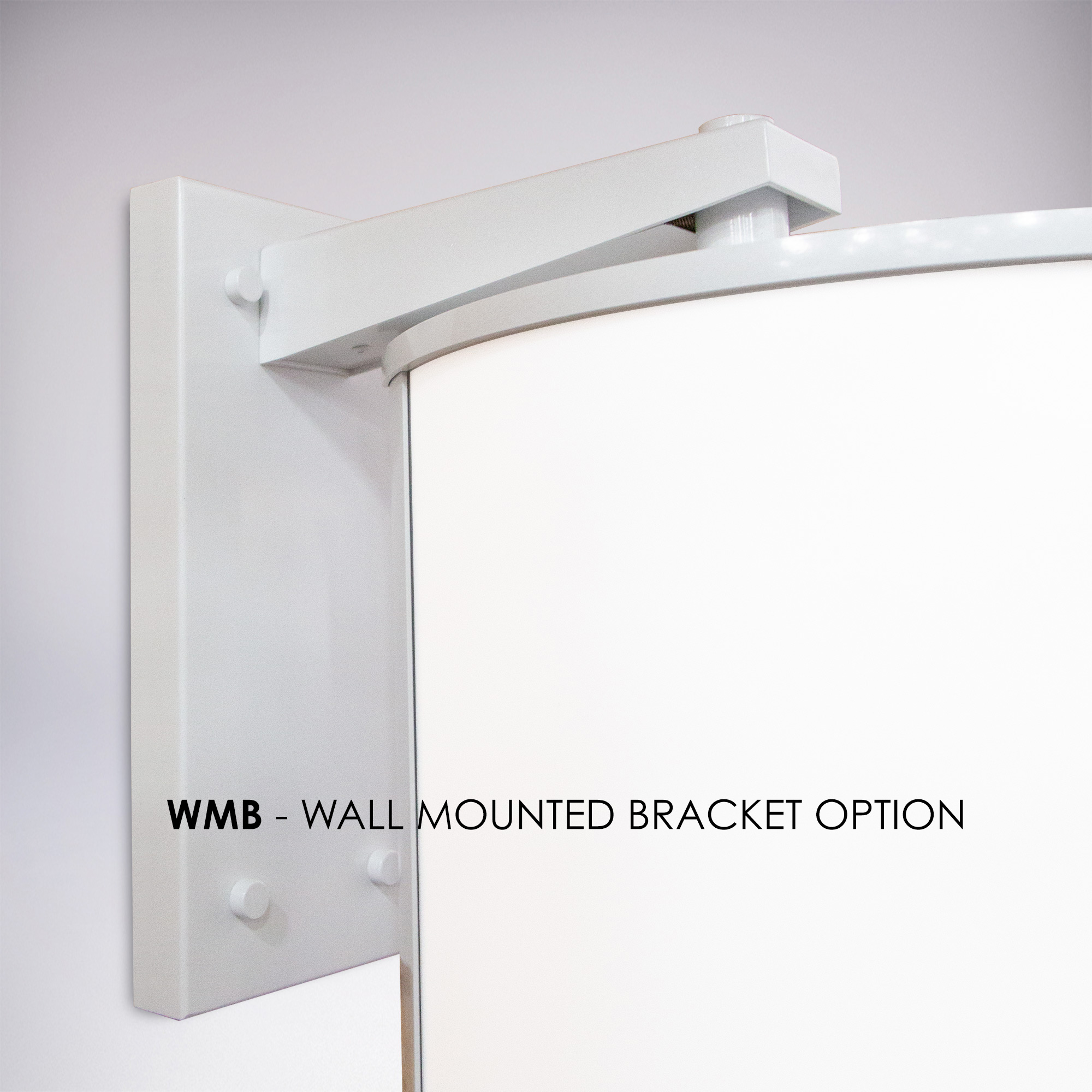

WMB Wall Mounted Bracket
LIGHT OUTPUT
LXX = ~ 69 LPW Delivered Lumens (Example: L64= 64W x 69LPW = 4,416 Lumens)
