Print This PageSUPERCEDED BY S2B70 Series
This product is still available to complete existing specifications, quotes, bids and active orders.
Please use the new part number for new applications and specifications.
| W | H | X | BASE MODEL NO. |
| 8″ | 96″ | 24″ | S2540-L24 |
| 8″ | 96″ | 36″ | S2541-L34 |
| 8″ | 96″ | 48″ | S2542-L48 |
| 8″ | 144″ | 72″ | S2543-L72 |
| 8″ | 144″ | 96″ | S2544-L96 |
Driver: 0-10V dimming to 1%, 120/277 [Excluding Downlight]
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided

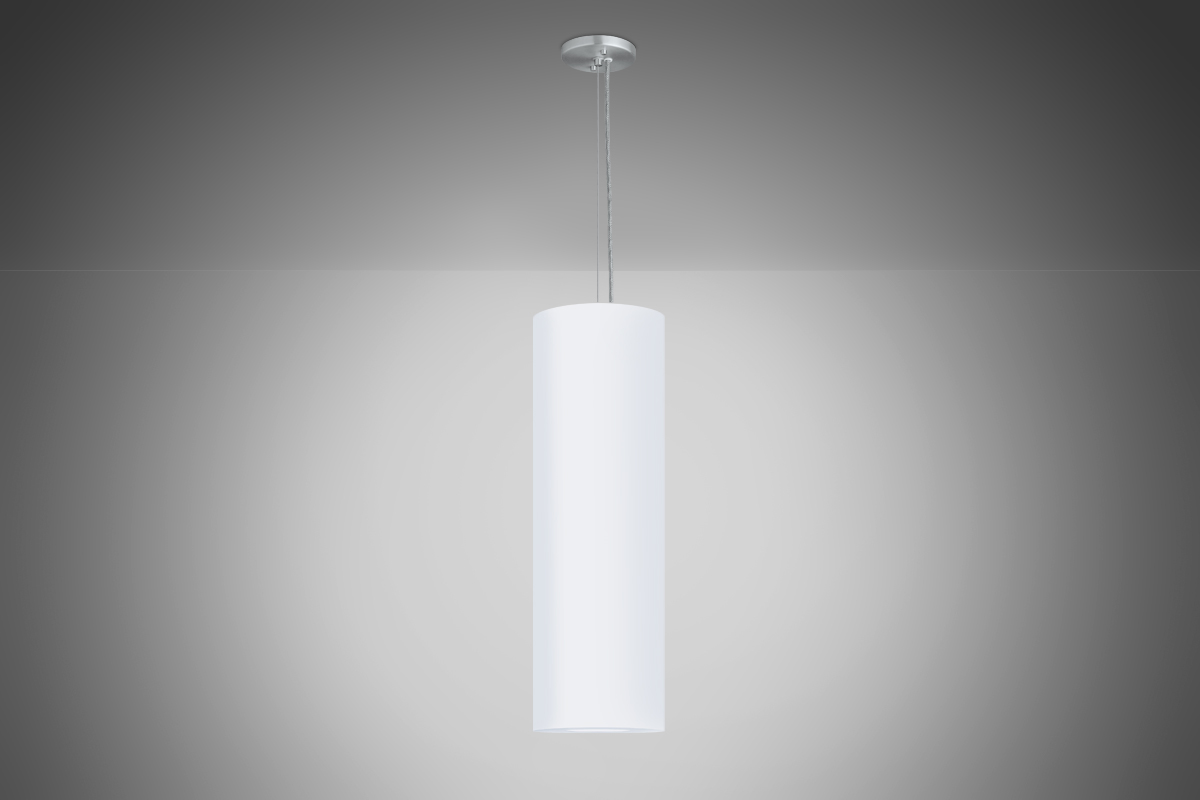

• Opal Matte Acrylic Cylinder
• Clear Silver Braided Cord with (1) Adjustable Aircraft Cable
• LED 0-10V Dimming Driver
Model No. + Lamp Code + Finish Code + Option Code
| S2540-L24 | + | 27K | + | PT | + | OA | + | Option |
| S2541-L34 | 30K | BA | ||||||
| S2542-L48 | 35K | BC | ||||||
| S2543-L72 | 40K | BN | ||||||
| S2544-L96 |
| BA Brushed Aluminum BC Brushed Chrome |
BN Brushed Nickel PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA48
SWC 45-Degree Swivel Canopy
P38 Optional GU24 Socket for LED PAR38 Downlight 120 or 277V
1S Single Stem
LXX = ~ 83 LPW Delivered Lumens (Example: L24= 24W x 83LPW = 1,992 Lumens)
