DIMENSIONS

W H X BASE MODEL NO.
26″ 36″ 8″ S2535-L60
32″ 36″ 10″ S2536-L84

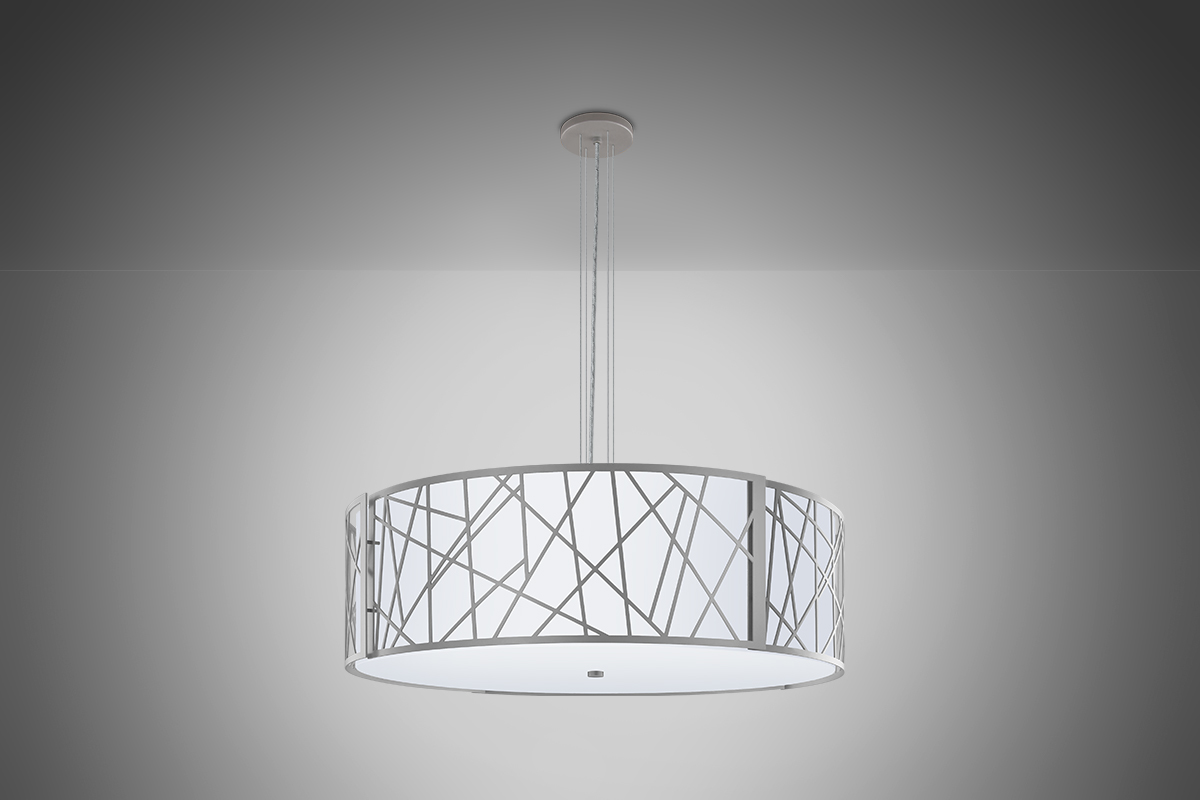

38″ 42″ 12″ S2537-L108
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• Solid Aluminum Material
• Clear Silver Braided Cord with (4) Adjustable Aircraft Cables
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish + OA +  Option Code

S2535-L60 + 27K + PT + OA + Option
S2536-L84 30K BA
S2537-L108 35K
40K
FINISHES
BA Brushed Aluminum PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
2C Two-Circuit Wiring

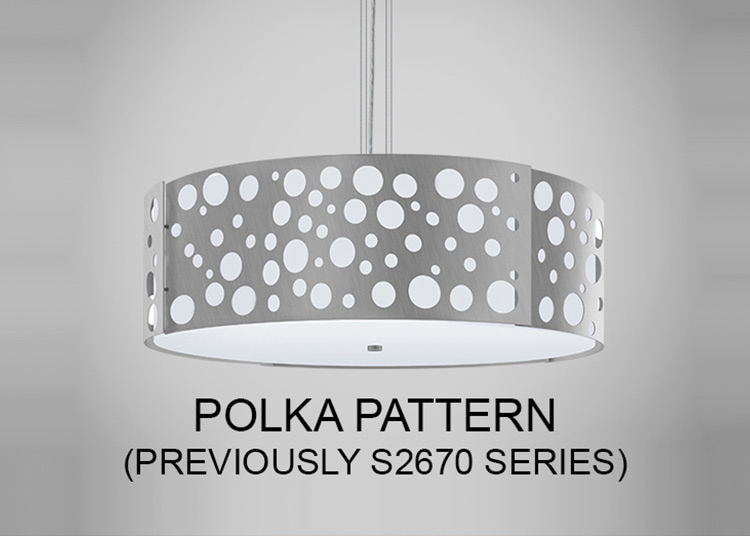

SP1 Polka Shade Pattern
SP2 Parallel Shade Pattern
BK4 Black Cord with (4) Adjustable Aircraft Cables
WH4 White Cord with (4) Adjustable Aircraft Cables

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L60= 60W x 75LPW = 4,500 Lumens)
