SUPERCEDED BY S2B60 Series

This product is still available to complete existing specifications, quotes, bids and active orders.
Please use the new part number for new applications and specifications.

DIMENSIONS

W H X BASE MODEL NO.
6″ 96″ 24″ S2530-L24
6″ 96″ 36″ S2531-L34
6″ 96″ 48″ S2532-L48
6″ 96″ 72″ S2533-L72
6″ 144″ 96″ S2534-L96
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277 [Excluding Downlight]
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided

FEATURES

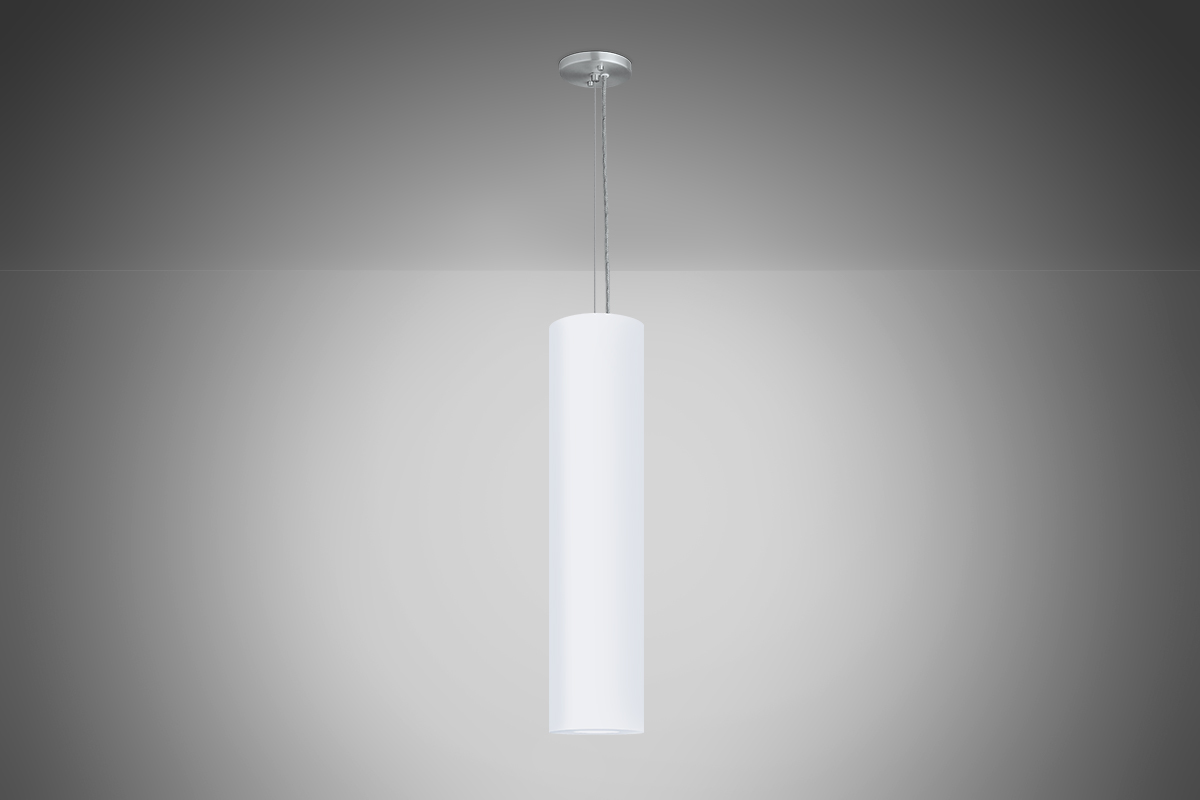

• Opal Matte Acrylic Cylinder
• Clear Silver Braided Cord with (1) Adjustable Aircraft Cable
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish + OA + Option Code

S2530-L24 + 27K + PT + OA + Option
S2531-L34 30K XT
S2532-L48 35K
S2533-L72 40K
S2534-L96
FINISHES

PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*

*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA48
SWC 45-Degree Swivel Canopy
1S Single Stem
P30 Optional E26 Socket for LED PAR30 Shortneck Downlight, 120V Only Separate Circuit

LIGHT OUTPUT

LXX = ~ 83 LPW Delivered Lumens (Example: L24= 24W x 83LPW = 1,992 Lumens)
