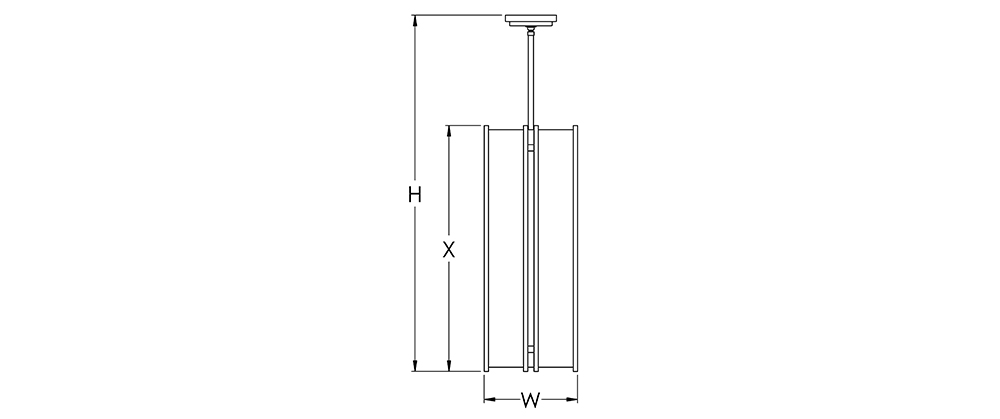

| W | H | X | BASE MODEL NO. |
| 11″ | 42″ | 29″ | S2525-L32 |
| 13″ | 48″ | 31″ | S2526-L32 |
Driver: 0-10V dimming to 1%, 120/277 [Excluding Downlight]
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) Structural Blocking with a 4″ Octagonal Junction Box (by others) is required.
• Opal Matte Acrylic
• 150W Par38 Medium Base Downlight on Separate 120V Only Circuit
• Solid Bar Stock Material
• LED 0-10V Dimming Driver
Model No. + Lamp Code + Finish + OA + Option Code
| S2525-L32 | + | 27K | + | PT | + | OA | + | Option |
| S2526-L32 | 30K | BA | ||||||
| 35K | BB | |||||||
| 40K | BC | |||||||
| BN | ||||||||
| PC |
| BA Brushed Aluminum BB Brushed Brass BC Brushed Chrome |
BN Brushed Nickel PC Polished Chrome PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA50
FAA = Faux Alabaster Acrylic (Hand Painted) (FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan)
SWC 35-Degree Swivel Canopy
LXX = ~ 68 LPW Delivered Lumens (Example: L32= 32W x 68LPW = 2,176 Lumens)
