| W | H | X | BASE MODEL NO. |

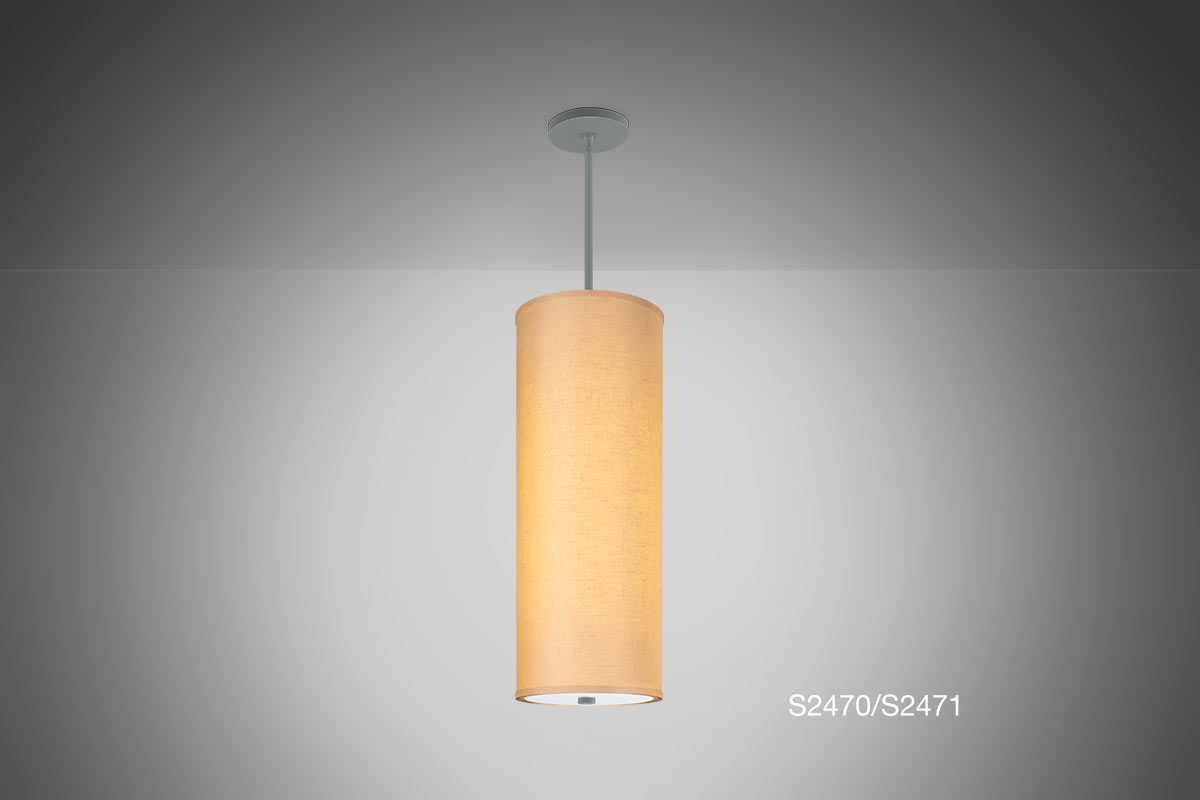

| 10″ | 42″ | 28″ | S2470-L32 (Single Stem) |
| 12″ | 42″ | 28″ | S2471-L32 (Single Stem) |
| 10″ | 42″ | 28″ | S2475-L32 (AC Cable) |
| 12″ | 42″ | 28″ | S2476-L32 (AC Cable) |
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
• Opal Matte Acrylic Bottom Diffuser
• Fabric Shades on Heavy Translucent White Styrene

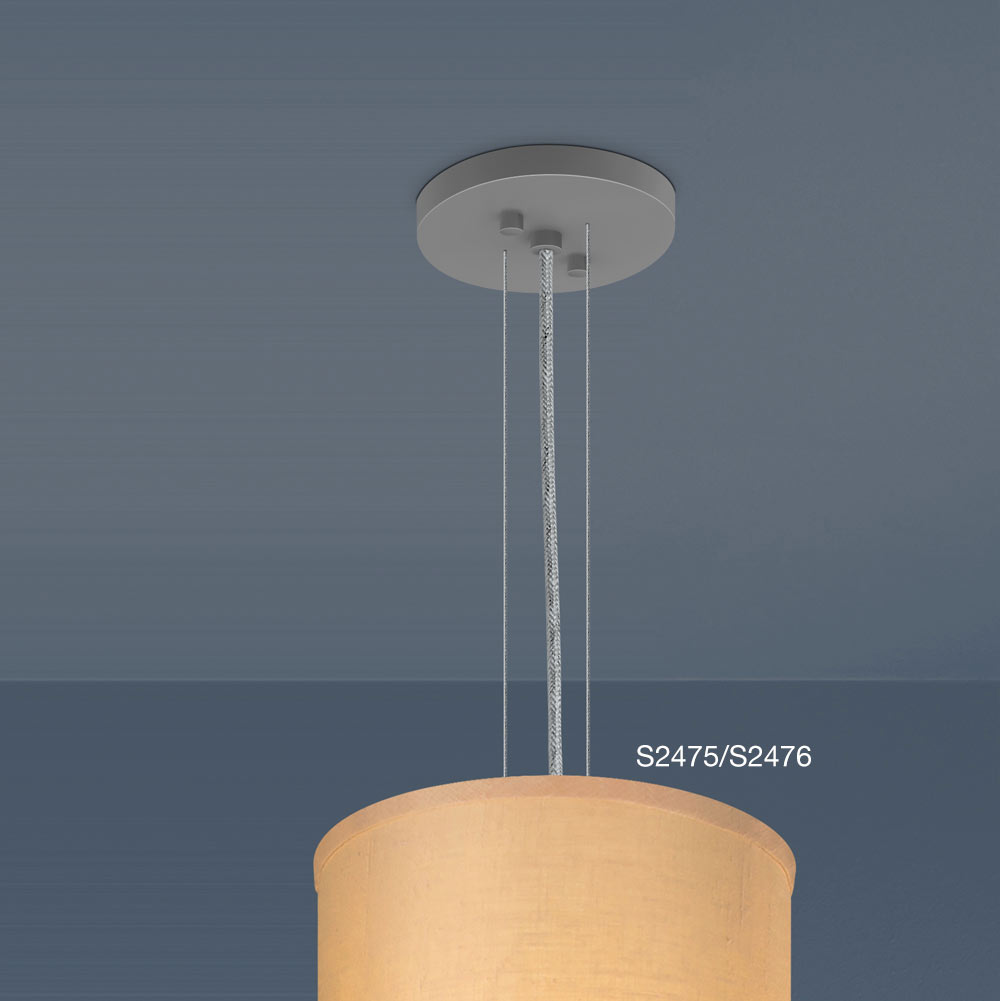

• Clear/Silver Braided Cord with (2) Aircraft Cables (S2475/S2476)
• LED 0-10V Dimming Driver
Model No. + Lamp Code + CCT + Finish + Fabric + OA + Option Code
| S2470-L32 | + | 27K | + | PT | + |
|
+ | OA | + | Option | ||
| S2471-L32 | 30K | BA |
|
|||||||||
| S2475-L32 | 35K | BB |
|
|||||||||
| S2476-L32 | 40K | BC |
|
|||||||||
| BN |
|
|||||||||||
| PC |
|
|||||||||||
|
||||||||||||
|
| BA Brushed Aluminum BB Brushed Brass BC Brushed Chrome |
BN Brushed Nickel PC Polished Chrome PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
| LF01 Huggy White | LF02 Olive | LF03 Sage |
| LF04 Orchre | LF05 Praline | LF06 Linen |
| LF07 Canvas | LF08 Butter | LF09 Breeze |
| LF10 Ebony | LF11 Parchment | LF12 Flan |
| LF13 Natural HF | LF14 Merlot | |
| CLF Custom Linen Fabric Shade (Consult Factory) | ||
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA48
BK2 Black Power Cable with (2) Aircraft Cables (S2475/S2476 Only)
WH2 White Power Cable with (2) Aircraft Cables (S2475/S2476 Only)
LXX = ~ 60 LPW Delivered Lumens (Example: L32= 32W x 60LPW = 1,920 Lumens) [White Shade – LF01]
