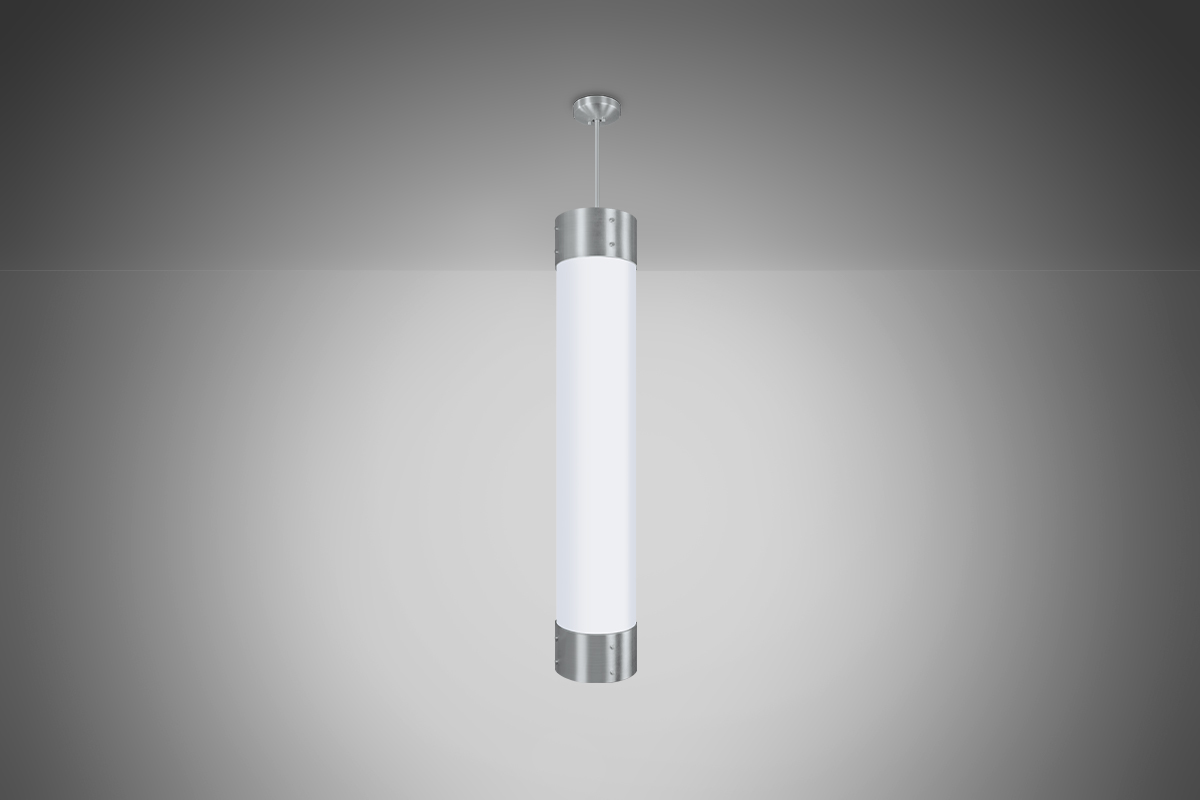

| W | H | X | BASE MODEL NO. |
| 10 1/2″ | 48″ | 33″ | S2430-L24 |
| 10 1/2″ | 84″ | 57″ | S2431-L48 |
| 10 1/2″ | 144″ | 105″ | S2432-L96 |
Driver: 0-10V dimming to 1%, 120/277 for both Cylinder and Downlight (2 Zone Control Optional)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
• Opal Matte Acrylic
• Single Stem with Hang Straight Swivel
• Downlight and Cylinder Core May Be Wired to Separate Control Circuits
• Solid Aluminum Top & Bottom Cap
• LED 0-10V Dimming Driver
Model No. + Downlight + Lamp Code + Finish Code + OA + Option Code
| S2430-L24 | + | ____* | + | 27K | + | PT | ZT | + | OA | + | Option |
| S2431-L48 | D16N | 30K | BA | PWT | |||||||
| S2432-L96 | D16M | 35K | CT | BST | |||||||
| D16W | 40K | GT | TT | ||||||||
| NT |
____* = if left blank – no downlight
| BA Brushed Aluminum NT Nickel Touch GT Gold Touch CT Copper Touch ZT Bronze Touch |
TT Toffee Touch PWT Pewter Touch BST Blackened Steel Touch PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |

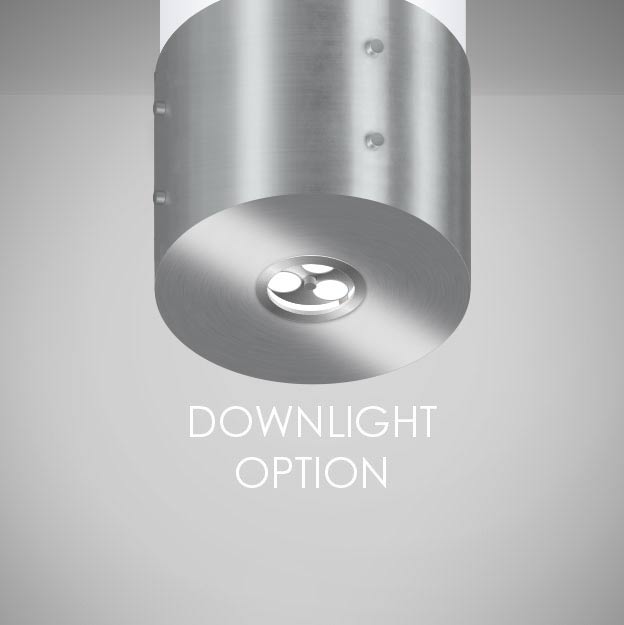

D16N Narrow (30 degrees)
D16M Medium (45 degrees)
D16W Wide (60 degrees)
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
SWC 35-Degree Swivel Canopy
SB1 Clear Silver Braided Cord with One Adjustable Aircraft Cable
Cylinder Core Lighting Lumens: LXX = LED Wattage, therefore L24 = LED 24W. The typical lumen output is ~89LPW, so therefore L24 would deliver 2,136L. Use this formula to estimate delivered lumens based on the LXX number for each length.
Downlight Lumens: DxxW indicates Downlight wattage and beam spread. For the downlight, typical lumen output is 100LPW, so a D12W would deliver 1,200L in a wide beam pattern.
