Print This PageDIMENSIONS
| W | X | H | BASE MODEL NO. |

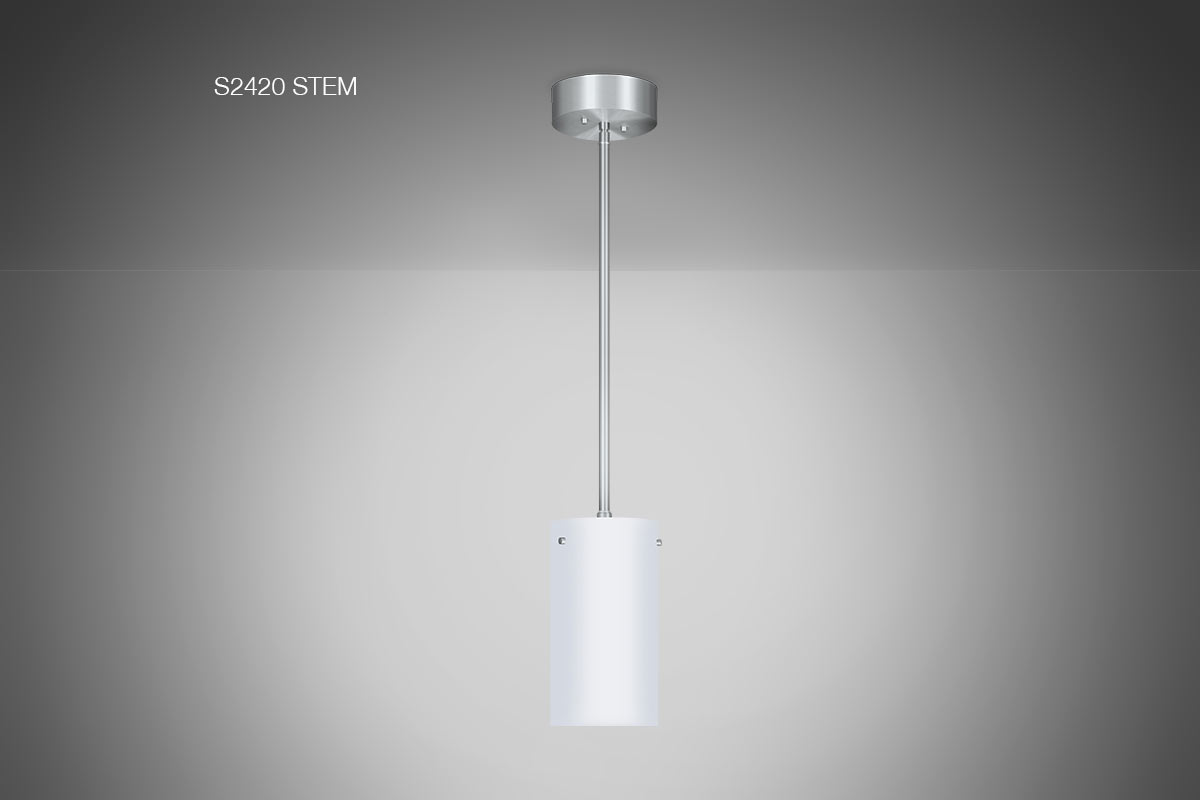

| 6″ | 11″ | 36″ | S2420-L24 (Stem) |
| 6″ | 11″ | 36″ | S2425-L24 (Cables) |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Clear Silver Electrical Cord with (2) Adjustable Aircraft Cables or Single Stem
• Opal Matte Glass with Closed Bottom
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Fabric + OA + Option Code
| S2420-L24 | + | 27K | + | PT | + | OA | + | Option |
| S2425-L24 | 30K | BA | ||||||
| 35K | BB | |||||||
| 40K | BC | |||||||
| BN | ||||||||
| PC |
FINISHES
| BA Brushed Aluminum BB Brushed Brass BC Brushed Chrome |
BN Brushed Nickel PC Polished Chrome PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA48
SWC 35-Degree Swivel Canopy
OMA Opal Matte Acrylic with Closed Bottom
LIGHT OUTPUT
LXX = ~ 70 LPW Delivered Lumens (Example: L24= 24W x 70LPW = 1,680 Lumens)
