DIMENSIONS

W H X BASE MODEL NO.
24″ 36″ 4.5″ S2345-T-L72
30″ 36″ 5.5″ S2346-T-L96
36″ 48″ 6.5″ S2347-T-L120
44″ 48″ 9.5″ S2348-T-L152
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided

FEATURES

• Opal Matte Acrylic Bottom Lens
• Direct/Indirect Light Distribution
• Solid Spun Aluminum Shade (Seamless)
• (4) Adjustable Aircraft Cables
• Clear Silver Braided Cord
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + Option Code

S2345-T-L72 + 30K + PT + Option
S2346-T-L96 35K XT
S2347-T-L120 40K
S2348-T-L152
FINISHES

PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*

*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA48
1S Single Stem
TPL Top Lens, Opal Acrylic
TPP Closed Top Panel

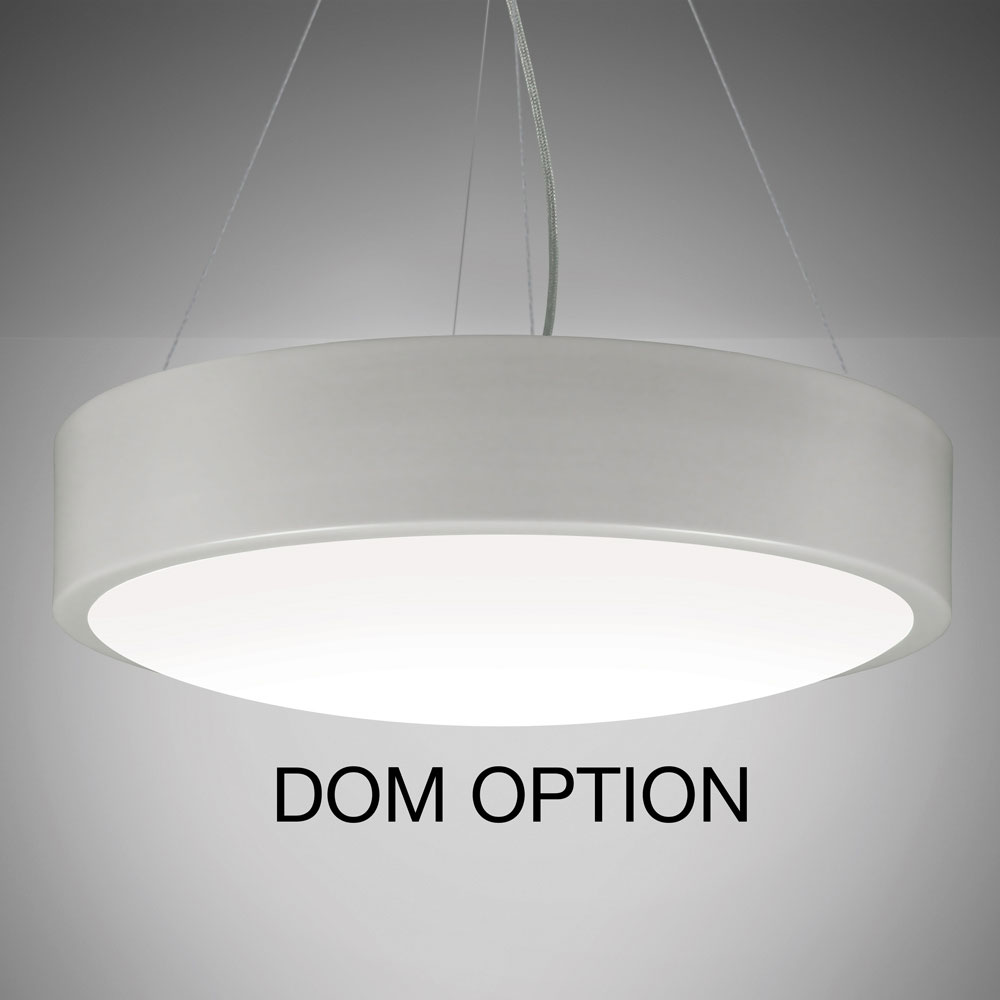

DOM Domed Opal Matte Lens – 1 1/2″ Drop
BK4 Black Cord with (4) Adjustable Aircraft Cables
WH4 White Cord with (4) Adjustable Aircraft Cables

LIGHT OUTPUT

LXX = ~ 98 LPW Delivered Lumens (Example: L72= 72W x 98LPW = 7,056 Lumens)
