DIMENSIONS

W H X BASE MODEL NO.
24″ 36″ 6 1/2″ S2345-L36
30″ 36″ 7 1/2″ S2346-L42
36″ 48″ 8 1/2″ S2347-L60
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided

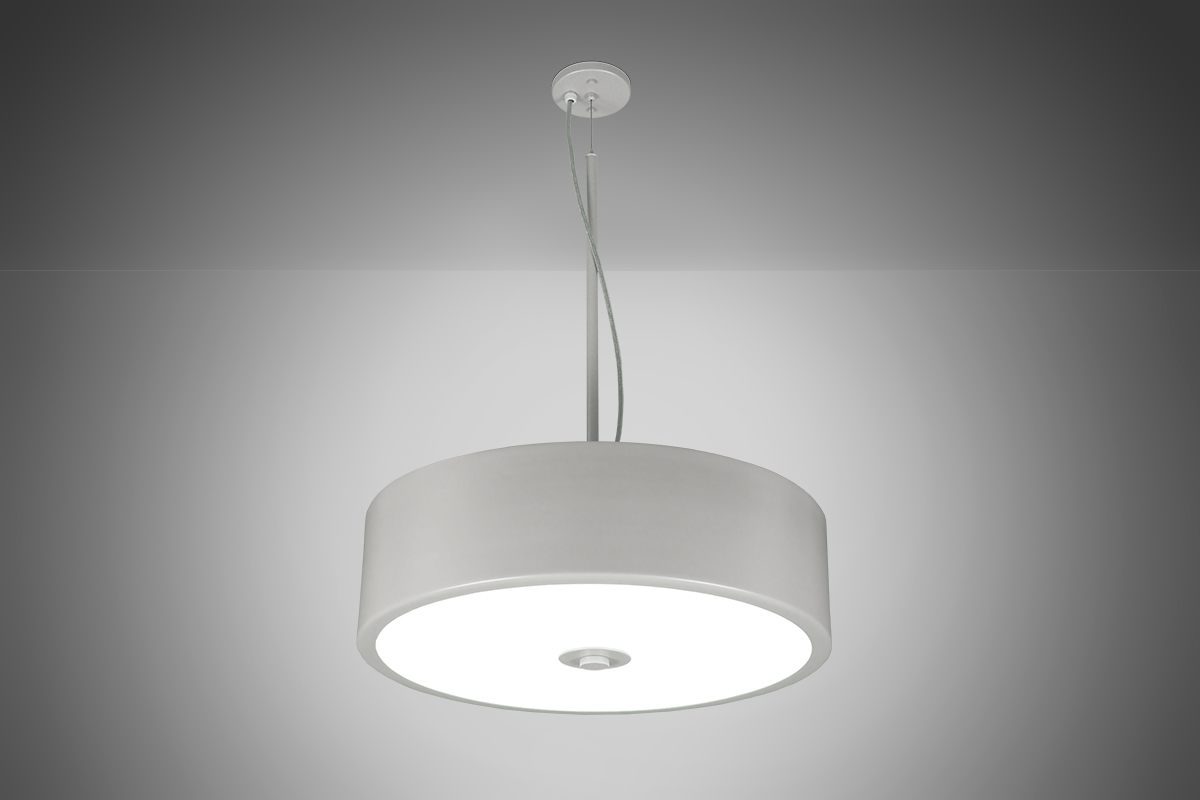

FEATURES

• Opal Matte Acrylic Bottom Lens
• Direct/Indirect Light Distribution
• Solid Spun Aluminum Shade (Seamless)

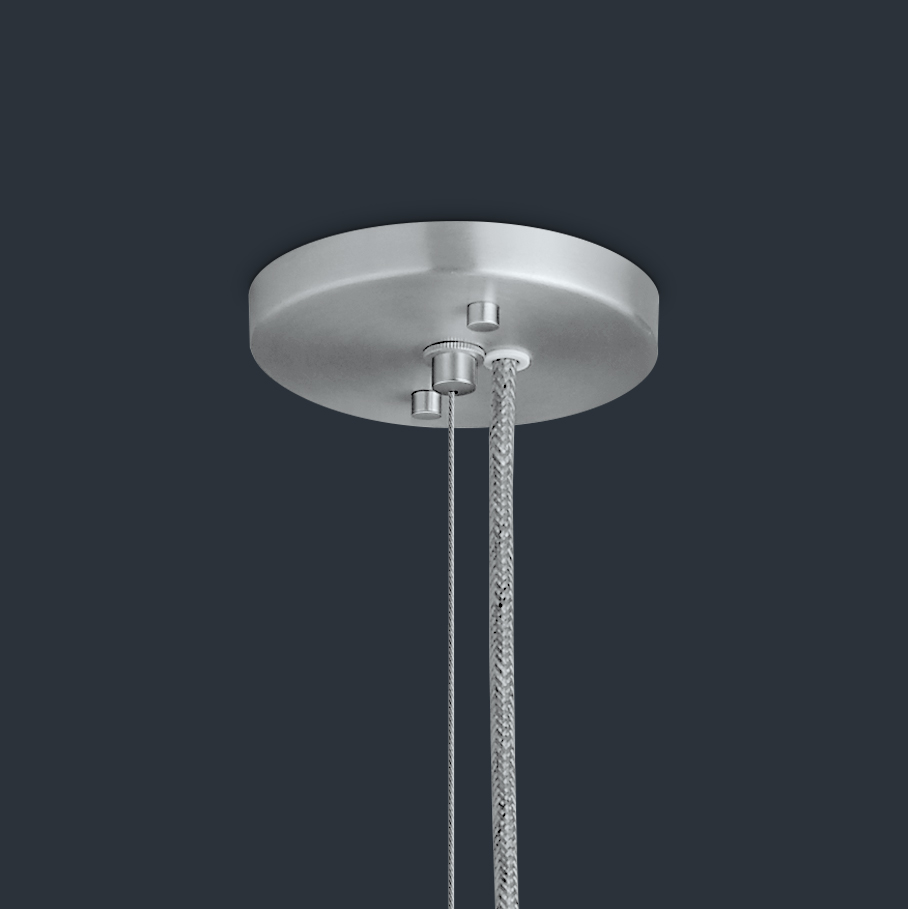

• Clear Silver Braided Cord
• 5/8” Tube with Aircraft Cable
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + Option Code

S2345-L36 + 30K + PT + Option
S2346-L42 35K XT
S2347-L60 40K
FINISHES

PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*

*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA48
2C Two-Circuit Wiring
1S Single Stem
TPL Top Lens, Opal Acrylic
BK3 Black Cord with (3) Adjustable Aircraft Cables
WH3 White Cord with (3) Adjustable Aircraft Cables

LIGHT OUTPUTt

LXX = ~ 75 LPW Delivered Lumens (Example: L36= 36W x 75LPW = 2,700 Lumens)
