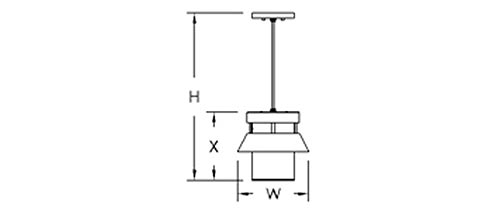

Print This PageDIMENSIONS
| W | H | X | BASE MODEL NO. |
| 10 1/8″ | 24″ | 9 13/16″ | S2330-L24 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic
• Silver Braided SJ Cord
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S2330-L24 | + | 27K | + | PT | + | OA | + | Option |
| 30K | BA | |||||||
| 35K | BB | |||||||
| 40K | BC | |||||||
| BN |
FINISHES
| BA Brushed Aluminum BB Brushed Brass BC Brushed Chrome |
BN Brushed Nickel PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA48
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2, Antique; FA3 Grey; FA4 Taupe; FA5 Honey, FA6 Tuscan]
BK Black Cord
WH White Cord
LIGHT OUTPUT
LXX = ~ 70 LPW Delivered Lumens (Example: L24= 24W x 70LPW = 1,680 Lumens)
