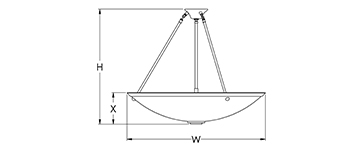

DIMENSIONS

W H X BASE MODEL NO.
28″ 24″ 6 1/4″ S2325-L36
36″ 30″ 8 1/4″ S2326-L60
42″ 36″ 9 1/4″ S2327-L84
48″ 42″ 10 1/4″ S2328-L108
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic (Standard)
• Fabricated Heavy Gauge Cold Rolled Steel
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2325-L36 + 27K + PT + OA + Option
S2326-L60 30K BA
S2327-L84 35K BB
S2328-L108 40K BN
CC
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BN Brushed Nickel		 CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)

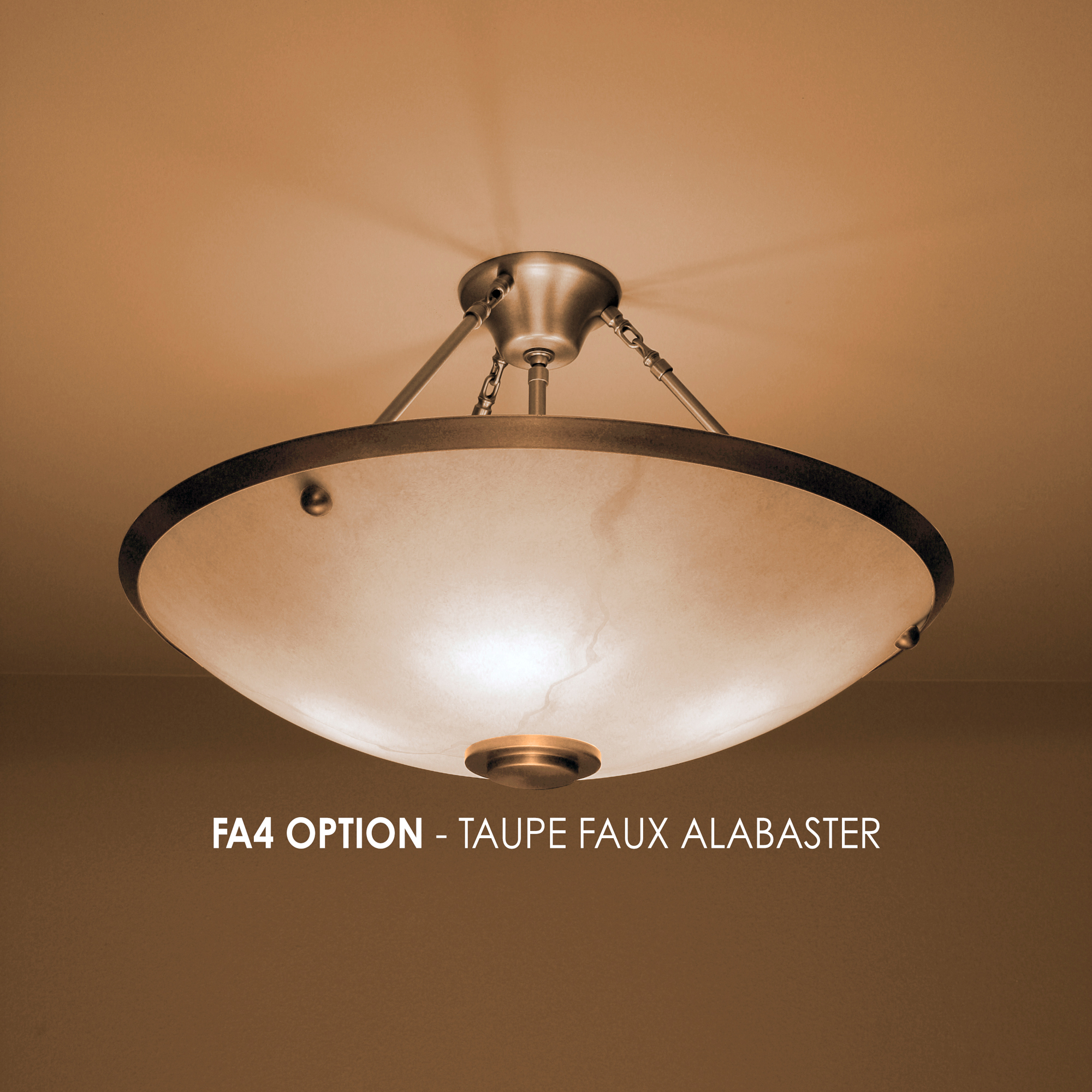

FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
SWC 35-Degree Swivel Canopy
2C Two-Circuit Wiring

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L36= 36W x 69LPW = 2,484 Lumens)
