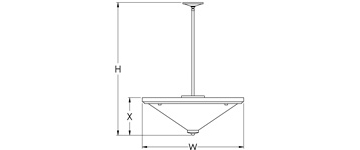

DIMENSIONS

W H X BASE MODEL NO.
27 1/2″ 36″ 10″ S2200-L48
33 1/2″ 36″ 13″ S2201-L60
39 1/2″ 36″ 13″ S2202-L72
45 1/2″ 36″ 15 1/2″ S2203-L108
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Bowl
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2200-L48 + 27K + PT + OA + Option
S2201-L60 30K XT
S2202-L72 35K PF
S2203-L108 40K
FINISHES

PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*
PF Pure Metal Finishes*

*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
SWC 35-Degree Swivel Canopy
2C Two-Circuit Wiring
3S Three Stems
4A Four Trim Bars

LIGHT OUTPUT

LXX = ~ 81 LPW Delivered Lumens (Example: L48= 48W x 81LPW = 3,888 Lumens)

Three Stem Option
Four Arms Over Diffuser Option
