 Product Cutsheet

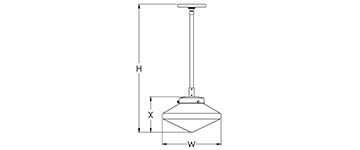

DIMENSIONS

W H X BASE MODEL NO.
10″ 36″ 6″ S2040-L12
14″ 36″ 9 1/2″ S2041-L14
18″ 36″ 12 1/2″ S2042-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Glass Diffuser
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + Option Code

S2040-L12 + 27K + PT + OA + Option
S2041-L14 30K CC
S2042-L24 35K AP
40K BA
PB
PC
FINISHES
AP Aged Pewter
BA Brushed Aluminum
PB Polished Brass		 PC Polished Chrome
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
SWC 35-Degree Swivel Canopy

LIGHT OUTPUT

LXX = ~ 100 LPW Delivered Lumens (Example: L12= 12W x 100LPW = 1,200 Lumens)
