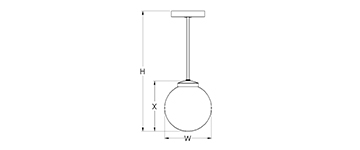

DIMENSIONS

W H X BASE MODEL NO.
10″ 36″ 10 3/4″ S2035-L12
14″ 36″ 15″ S2036-L14
18″ 36″ 19″ S2037-L24
18″ 36″ 19″ S2037-L39
18″ 36″ 19″ S2037-L52
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Glass Diffuser
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + Option Code

S2035-L12 + 27K + PT + OA + Option
S2036-L14 30K CC
S2037-L24 35K AP
S2037-L39 40K BA
S2037-L52 PB
PC
FINISHES
AP Aged Pewter
BA Brushed Aluminum
PB Polished Brass		 PC Polished Chrome
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
SWC 35-Degree Swivel Canopy

LIGHT OUTPUT

LXX = ~ 100 LPW Delivered Lumens (Example: L12= 12W x 100LPW = 1,200 Lumens)
