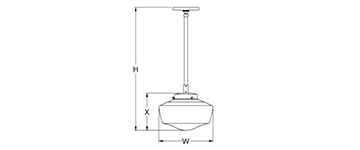

DIMENSIONS

W H X BASE MODEL NO.
10″ 36″ 7″ S2030-L12
14″ 36″ 9 1/2″ S2031-L14
18″ 36″ 11″ S2032-L24
18″ 36″ 11″ S2032-L39
18″ 36″ 11″ S2032-L52
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Glass Diffuser
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + Option Code

S2030-L12 + 27K + PT NT + OA + Option
S2031-L14 30K BA ZT
S2032-L24 35K PB PWT
S2032-L39 40K PC BST
S2032-L52 GT TT
CT CC
FINISHES
BA Brushed Aluminum
PB Polished Brass
PC Polished Chrome
GT Gold Touch
CT Copper Touch
NT Nickel Touch		 ZT Bronze Touch
PWT Pewter Touch
BST Blackened Steel Touch
TT Toffee Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
SWC 35-Degree Swivel Canopy

LIGHT OUTPUT

LXX = ~ 100 LPW Delivered Lumens (Example: L12= 12W x 100LPW = 1,200 Lumens)
