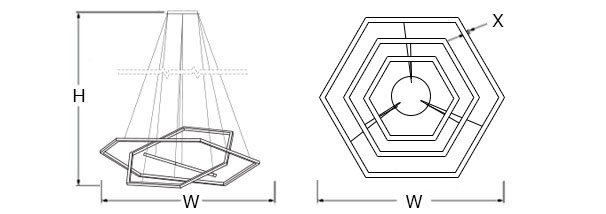

| W | X | H | BASE MODEL NO. |
| 60″ | 1 3/8″ | 72″ | S1105-L144 |
Driver: 0-10V Dimming to 1%, 120/277 (Drivers are Remote)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided (Additional structural blocking required for weight).
• Direct Illumination (indirect option)
• LED continuous appearance
• Flexible Silicone Opal Lens

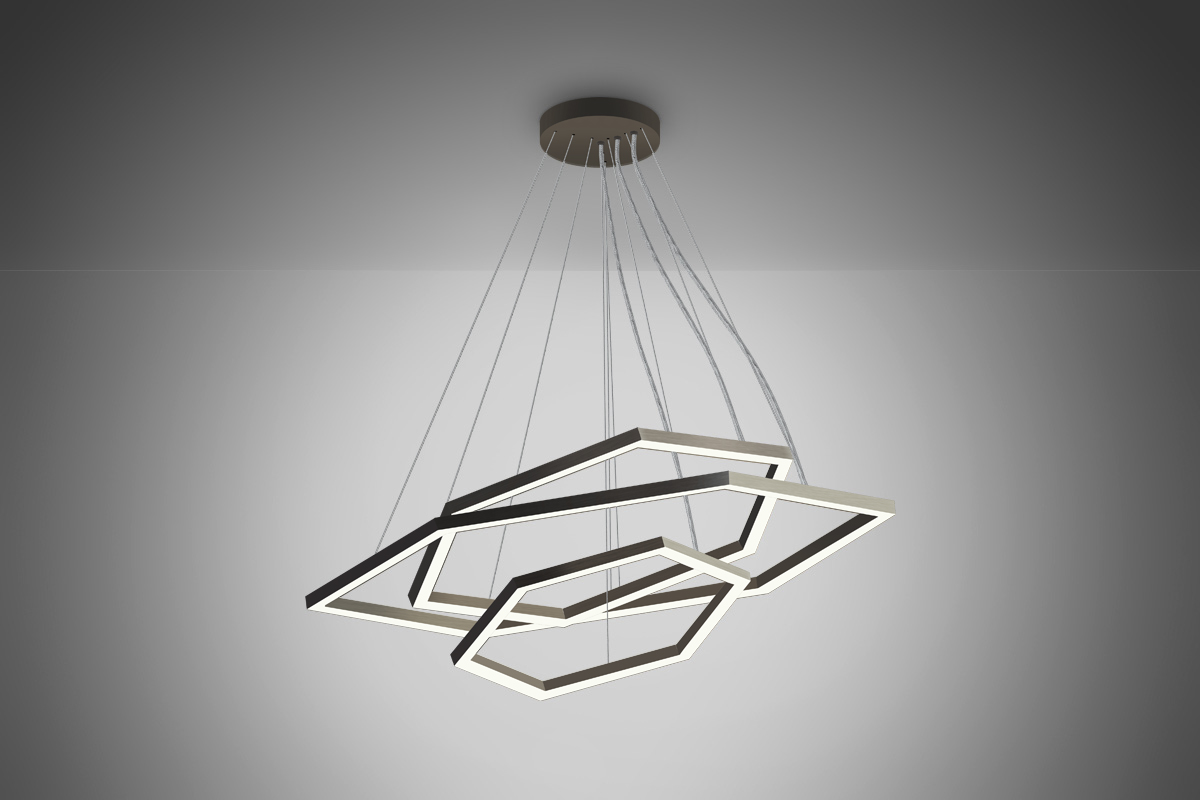

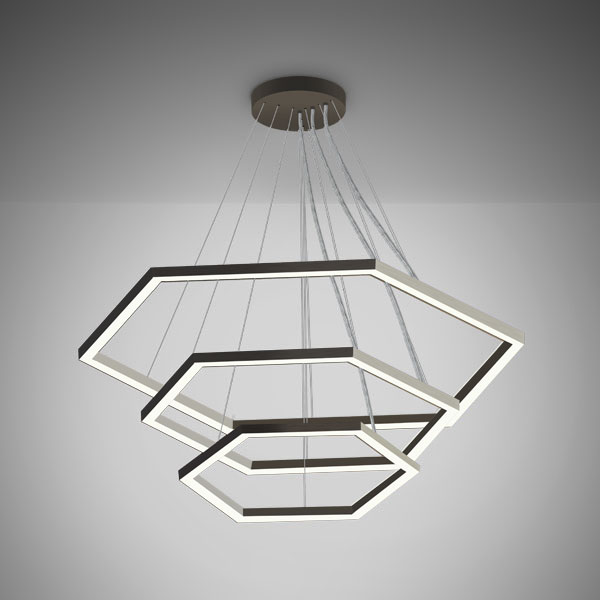

• Tiered or Orbital Orientation
• Clear Silver Braided Cord with (3) Adjustable Aircraft Cables per Ring
• LED 0-10V Dimming Driver
Model No. + Lamp Code + Finish Code + OA + Option Code
| S1105‑L144 | + | 27K | + | PT | + | OA | + | Option |
| 30K | CC | |||||||
| 35K | BA | |||||||
| 40K | CT | |||||||
| GT | ||||||||
| NT | ||||||||
| ZT | ||||||||
| PWT | ||||||||
| BST | ||||||||
| TT |
| BA Brushed Aluminum CT Copper Touch NT Nickel Touch GT Gold Touch ZT Bronze Touch |
PWT Pewter Touch BST Blackened Steel Touch TT Toffee Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
OA Specify Overall Height of Fixture in Inches; E.G. – OA96
CRU Center Ring Uplight – inverted center ring
BK9 Black Cord with (9) Adjustable Aircraft Cables
WH9 White Cord with (9) Adjustable Aircraft Cables
LXX = ~60 LPW Delivered Lumens (Example: L144= 144W x 60LPW = 8,640 Lumens)
