 Product Cutsheet

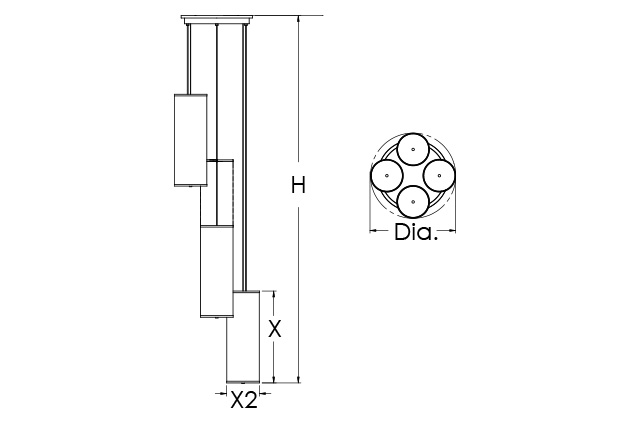

DIMENSIONS

Dia X X2 H BASE MODEL NO.
24″ 24″ 10″ 192″ Max S1095-4L24
24″ 36″ 10″ 192″ Max S1096-4L36
24″ 48″ 10″ 192″ Max S1097-4L48
24″ 72″ 10″ 192″ Max S1098-4L72
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided (Additional structural blocking required for weight).

FEATURES

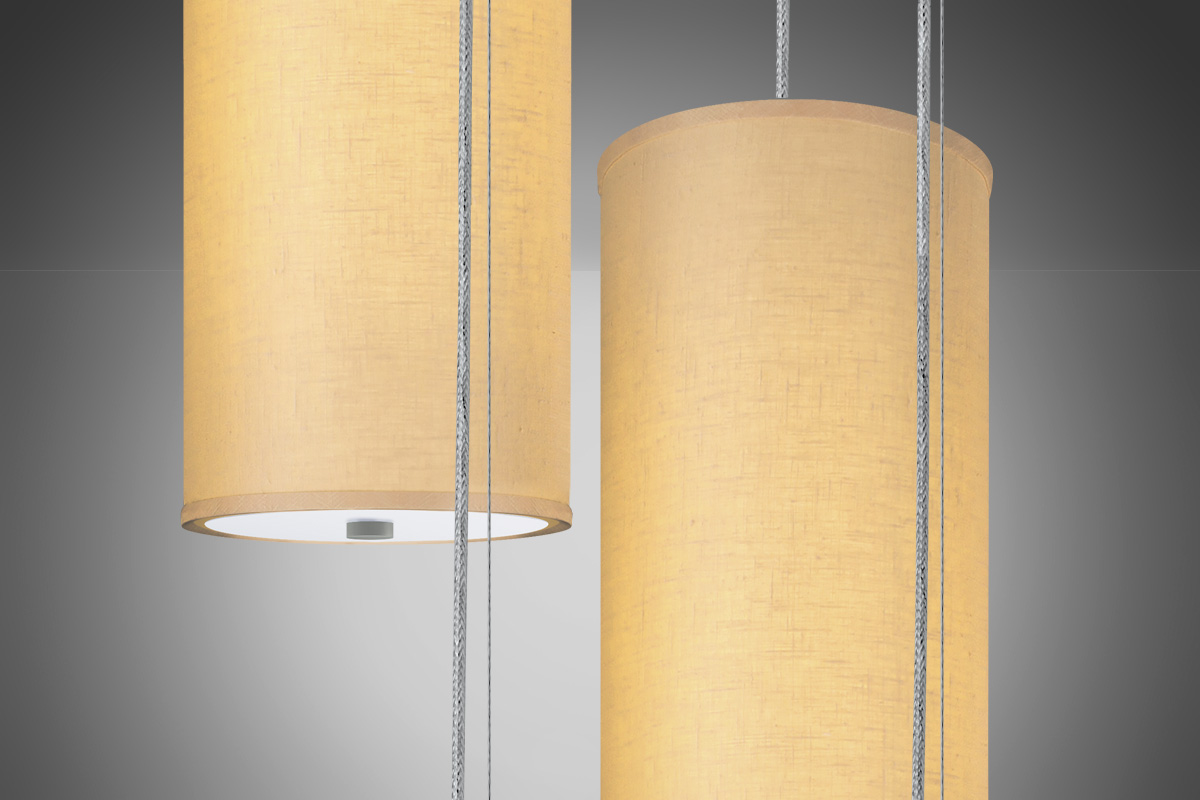

• Fabric Cylinder with Bottom Opal Matte Acrylic Lens – (Alternate Opal Matte Acrylic Cylinder Option)
• LED Integral Light Source
• Clear Silver Braided Cord(s) with Adjustable Aircraft Cable(s)
• LED 0-10V 1% Dimming Drivers

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish + Shade Code + OA + Option Code

S1095-4L24 + 27K + PT CT + LF01 LF06 LF11 OMA4 + OA + Option
S1096-4L36 30K BA PWT LF02 LF07 LF12 OMA6
S1097-4L48 35K NT BST LF03 LF08 LF13 OMA8
S1098-4L72 40K GT TT LF04 LF09 LF14 OMA10
ZT CC LF05 LF010
FINISHES
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch		 PWT Pewter Touch
BST Blackened Steel Touch
TT Toffee Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
SHADE
Fabric Shade – (10″ Dia.) Opal Matte Acrylic Shade
LF01 Huggy White LF02 Olive LF03 Sage
LF04 Orchre LF05 Praline LF06 Linen
LF07 Canvas LF08 Butter LF09 Breeze
LF10 Ebony LF11 Parchment LF12 Flan
LF13 Natural HF LF14 Merlot
CLF Custom Linen Fabric Shade (Consult Factory)
OMA4 4″ Dia Acrylic
OMA6 6″ Dia Acrylic
OMA8 8″ Dia Acrylic
OMA10 10″ Dia Acrylic
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA96
BK1 Black Power Cables
WH1 White Power Cables
Consult Factory for Alternate Layouts

LIGHT OUTPUT

LXX = ~ 83 LPW Delivered Lumens (Example: 4L48= 4QTY x 48W x 83LPW = 15,936 Lumens)(Output is based on OMA Acrylic Lenses. Fabric Shades will have reduced output based on color).
