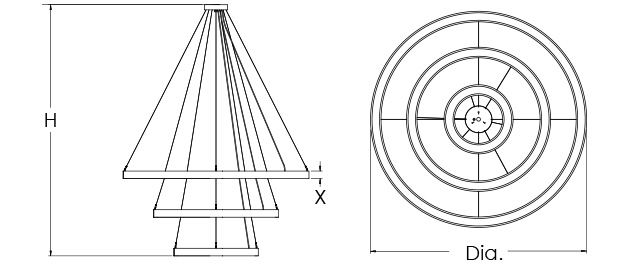

DIMENSIONS

Dia X H BASE MODEL NO.
60″/48″/36″ 3 1/2″ 96″ S1090-L124-L96-L72
72″/60″/48″ 3 1/2″ 96″ S1091-L144-L124-L96
SPECIFICATIONS

Driver: 0-10V dimming to 1% for LED Lamping, 120/277 (Drivers are Remote)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided (Additional structural blocking required for weight).

FEATURES

• Opal XT Acrylic Lens
• LED Downlight
• Clear Silver Braided Cord(s) with Adjustable Aircraft Cable(s)
• LED 0-10V 1% Dimming Drivers

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish  + OA + Option Code

S1090-L124-L96-L72 + 27K + PT + OA + Option
S1091-L144-L124-L96 30K XT
35K CC
40K
FINISHES

PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*
CC Custom Painted Finish

*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA96
BK12 Black Cord with (12) Adjustable Aircraft Cables
WH12 White Cord with (12) Adjustable Aircraft Cables

LIGHT OUTPUT

LXX = ~ 65 LPW Delivered Lumens (Example: L124= 124W x 65LPW = 8,060 Lumens)
