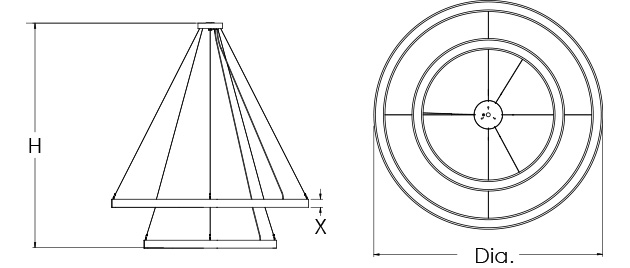

| Dia | X | H | BASE MODEL NO. |
| 48″/36″ | 3 1/2″ | 96″ | S1085-L96-L72 |
| 60″/36″ | 3 1/2″ | 96″ | S1086-L124-L72 |
| 60″/48″ | 3 1/2″ | 96″ | S1086-L124-L96 |
| 72″/36″ | 3 1/2″ | 96″ | S1087-L144-L72 |
| 72″/48″ | 3 1/2″ | 96″ | S1087-L144-L96 |
| 72″/60″ | 3 1/2″ | 96″ | S1087-L144-L124 |
Driver: 0-10V dimming to 1% for LED Lamping, 120/277 (Drivers are Remote)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided (Additional structural blocking required for weight).

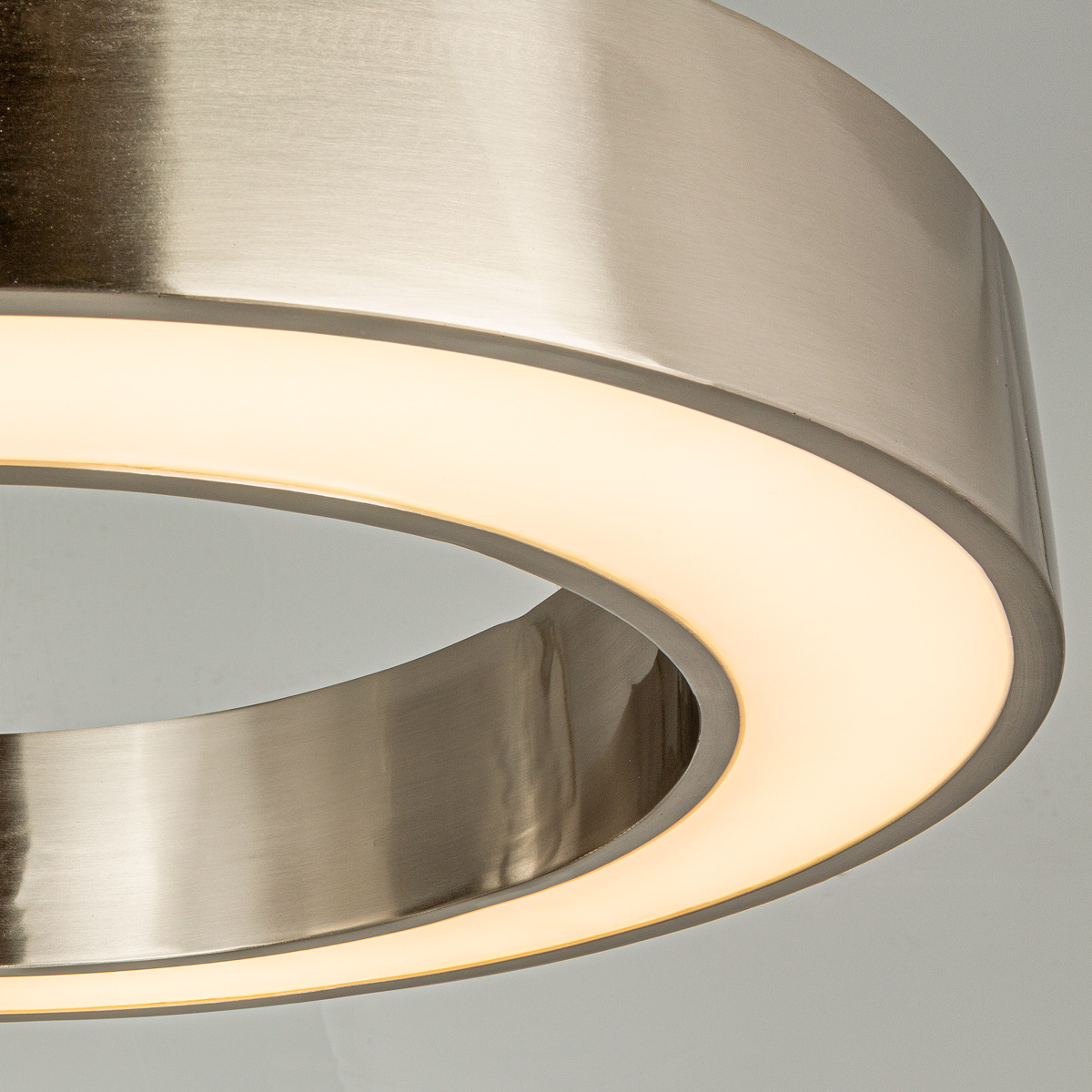

• Opal XT Acrylic Lens
• LED Downlight
• Clear Silver Braided Cord(s) with Adjustable Aircraft Cable(s)
• LED 0-10V 1% Dimming Drivers
Model No. + Lamp Code + Finish + OA + Option Code
| S1085-L96-L72 | + | 27K | + | PT | CT | + | OA | + | Option |
| S1086-L124-L72 | 30K | BA | PWT | ||||||
| S1086-L124-L96 | 35K | NT | BST | ||||||
| S1087-L144-L72 | 40K | GT | TT | ||||||
| S1087-L144-L96 | ZT | CC | |||||||
| S1087-L144-L124 |
| BA Brushed Aluminum NT Nickel Touch GT Gold Touch ZT Bronze Touch CT Copper Touch |
PWT Pewter Touch BST Blackened Steel Touch TT Toffee Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
OA Specify Overall Height of Fixture in Inches; E.G. – OA96
BK8 Black Cord with (8) Adjustable Aircraft Cables
WH8 White Cord with (8) Adjustable Aircraft Cables
LXX = ~ 99 LPW Delivered Lumens (Example: L124= 124W x 99LPW = 12,276 Lumens)
