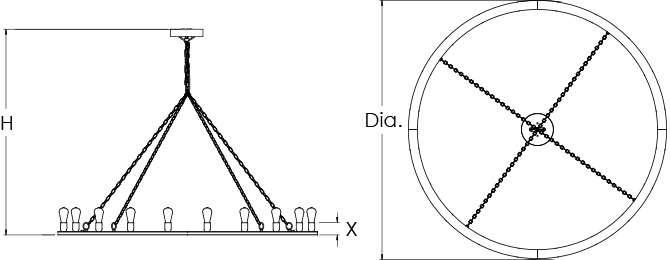

Print This PageDIMENSIONS
| Dia | X | H | BASE MODEL NO. |
| 48″ | 2.5″ | 60″ | S1060-12N20 |
| 60″ | 2.5″ | 72″ | S1061-16N20 |
| 72″ | 2.5″ | 96″ | S1062-20N20 |
SPECIFICATIONS
Voltage: 120V Only
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided (Additional structural blocking required for weight)
FEATURES
• E26 Sockets – 120V only
• Chain Mounted – Adjustable
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + Finish + OA + Option Code
| S1060-12N20 | + | PT | CT | + | OA | + | Option |
| S1061-16N20 | BA | PWT | |||||
| S1062-20N20 | NT | BST | |||||
| GT | TT | ||||||
| ZT | CC |
FINISHES
| BA Brushed Aluminum NT Nickel Touch GT Gold Touch ZT Bronze Touch CT Copper Touch |
PWT Pewter Touch BST Blackened Steel Touch TT Toffee Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
OA Specify Overall Height of Fixture in Inches; E.G. – OA96
5AC Aircraft Cable Mount with Silver Braided Cord.
LIGHT OUTPUT
Delivered Lumens based on chosen lamp (by others)
