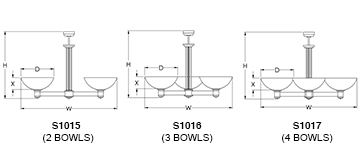

Print This PageDIMENSIONS
| W | H | D | X | BASE MODEL NO. |
| 88″ | 48″ | 30″ | 9″ | S1015-L120 |
| 88″ | 48″ | 30″ | 9″ | S1016-L180 |
| 88″ | 48″ | 30″ | 9″ | S1017-L240 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES

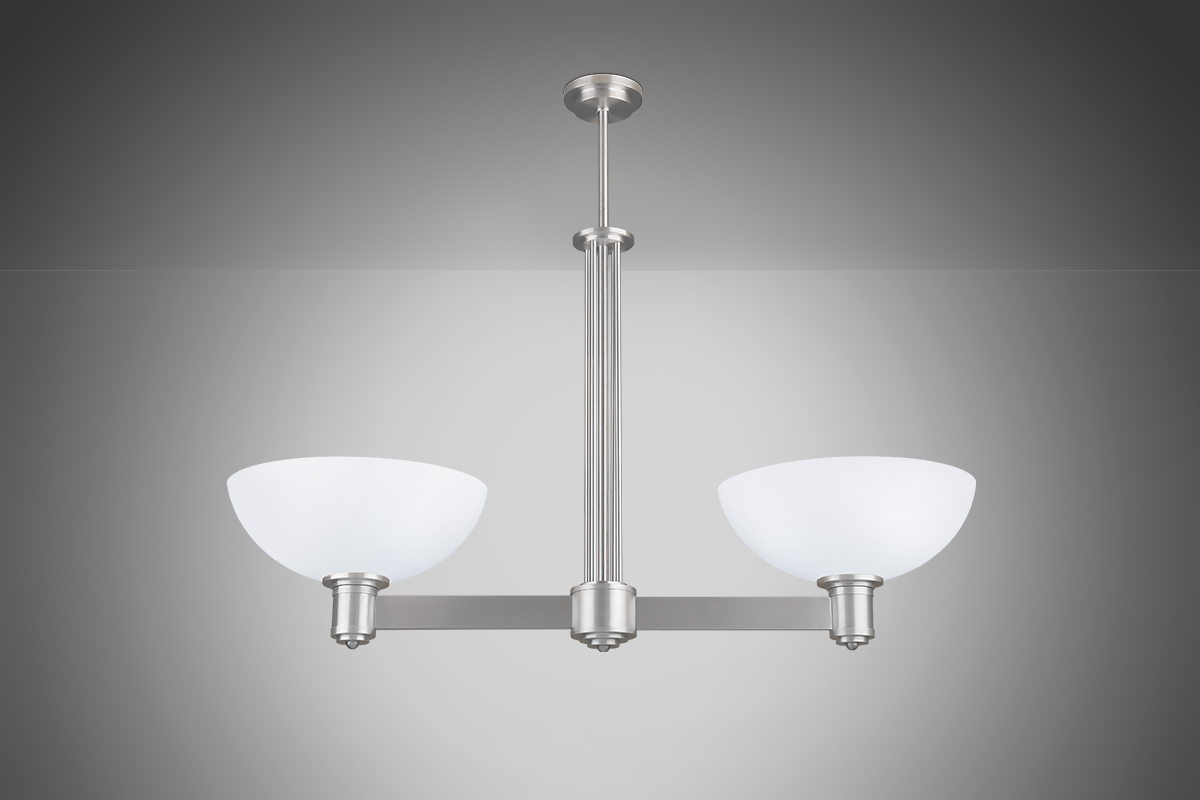

• Opal Acrylic Bowl
• Pendant Cluster Fixtures Available with Other Standard Trims
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + Finish Code + Option Code
| S1015-L120 | + | 27K | + | PT | BN | + | OA | + | Option |
| S1016-L180 | 30K | BA | PB | ||||||
| S1017-L240 | 35K | BB | PC | ||||||
| 40K | BC | PN |
FINISHES
| BA Brushed Aluminum BB Brushed Brass BC Brushed Chrome BN Brushed Nickel |
PB Polished Brass PC Polished Chrome PN Polished Nickel PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
LIGHT OUTPUT
LXX = ~ 88 LPW Delivered Lumens (Example: L120= 120W x 88LPW = 10,560 Lumens)
